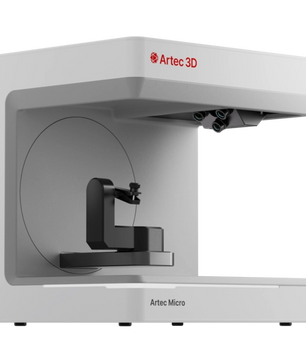

Automated Desktop Scanning for Small Objects
Artec Micro II is an automated desktop 3D scanner built for small objects, with up to 5-micron point accuracy and 2-micron repeatability. It's aimed at reverse engineering, quality inspection, and dental work, and it can combine scans with photogrammetry data for added realism.
Smart algorithms in Artec Studio position the object on an ideal scanning trajectory, so a one-click workflow takes you from setup to a finished, full-color 3D model.
Micron-Level Detail, Automated
High-precision capture without the manual setup.
5 Micron Accuracy
Up to 5-micron point accuracy and 2-micron repeatability, with ISO 12836 certification.
Quad-Cam Imaging
Four 13 MP cameras reach hard-to-see areas and sharp edges, acquiring about 1 million points per second.
One-Click Smart Scanning
Smart Scanning Mode positions the object on an ideal trajectory with no targets required.
Available Models
Every package includes the same Artec Micro II scanner.
Artec Micro II
Best for: precision desktop scanning of small parts.
- Artec Micro II 3D scanner
- 5-year Artec Studio subscription
- Access to the Artec Academy platform
- Exact package details confirmed at time of order
Artec Micro II Premium
Best for: full-featured, long-term scanning with training included.
- Artec Micro II 3D scanner
- 5-year Artec Studio subscription
- Access to the Artec Academy platform
- Exact package details confirmed at time of order
Full Color, No Targets
Micro II captures full-color models without targets, using scanner-native texture or high-resolution phototexture, and scans objects up to 20 × 20 × 15 cm.
- Target-free, full-color scanning at 24 bpp
- Scanner-native texture and photo texturing
- Direct export to Geomagic Control X for inspection reports
Capture Capacity
Object Size
Handles objects up to 20 × 20 × 15 cm, with a 4,700 cm³ volume capture zone on a 3-axis scan system.
Color & Texture
RGB LED lighting captures scanner-native color and phototexture at 24 bits per pixel.
Used for reverse engineering, quality inspection, forensics, archaeology and paleontology, design, and dentistry.
Artec Studio Included in the Workflow
Scan-to-CAD and Inspection
Artec Studio handles smart scanning, scan-to-CAD export, and direct export to Geomagic Control X, so small parts move from scan to inspection report in a few steps.
Full Specifications
Artec Micro II is available in Standard and Premium packages. The scanner specifications below apply to both.
Accuracy & Resolution
| 3D Point Accuracy | Up to 5 microns |
| Repeatability | 2 microns |
| Accuracy Certification | ISO 12836 |
| 3D Resolution | 40 microns |
| Cameras | 4 × 13 MP |
| Data Acquisition | 1 million points/s |
Capture Volume & Color
| Volume Capture | 4,700 cm³ |
| Field of View | Ø 20 × 15 cm |
| Scan System | 3-axis (third axis sold separately) |
| Smart Scanning Mode | Yes |
| Target-Free Scanning | Yes |
| Texture Capture | Scanner native and phototexture |
| Color Depth | 24 bpp |
| 3D / 2D Light Source | RGB LED / RGB LED |
Hardware & Connectivity
| Interface | USB 3.0 |
| Dimensions | 396 × 405 × 337 mm |
| Weight | 12 kg |
Software & System Requirements
| Software | Artec Studio 20 or higher |
| Supported OS | Windows 10 (x64), Windows 11 |
| Recommended PC | Intel Core i7 or i9, 64+ GB RAM, NVIDIA GPU with 8+ GB VRAM, CUDA 7.5+ |
| Minimum PC | Intel Core i5, i7, or i9, 32 GB RAM, GPU with 6 GB VRAM, CUDA 7.5+ |
| Mesh Export Formats | OBJ, PLY, WRL, STL, AOP, ASC, Disney PTX (PTEX), E57, XYZRGB |
| CAD Export Formats | STEP, IGES, X_T |
| Measurement Export Formats | CSV, DXF, XML |
