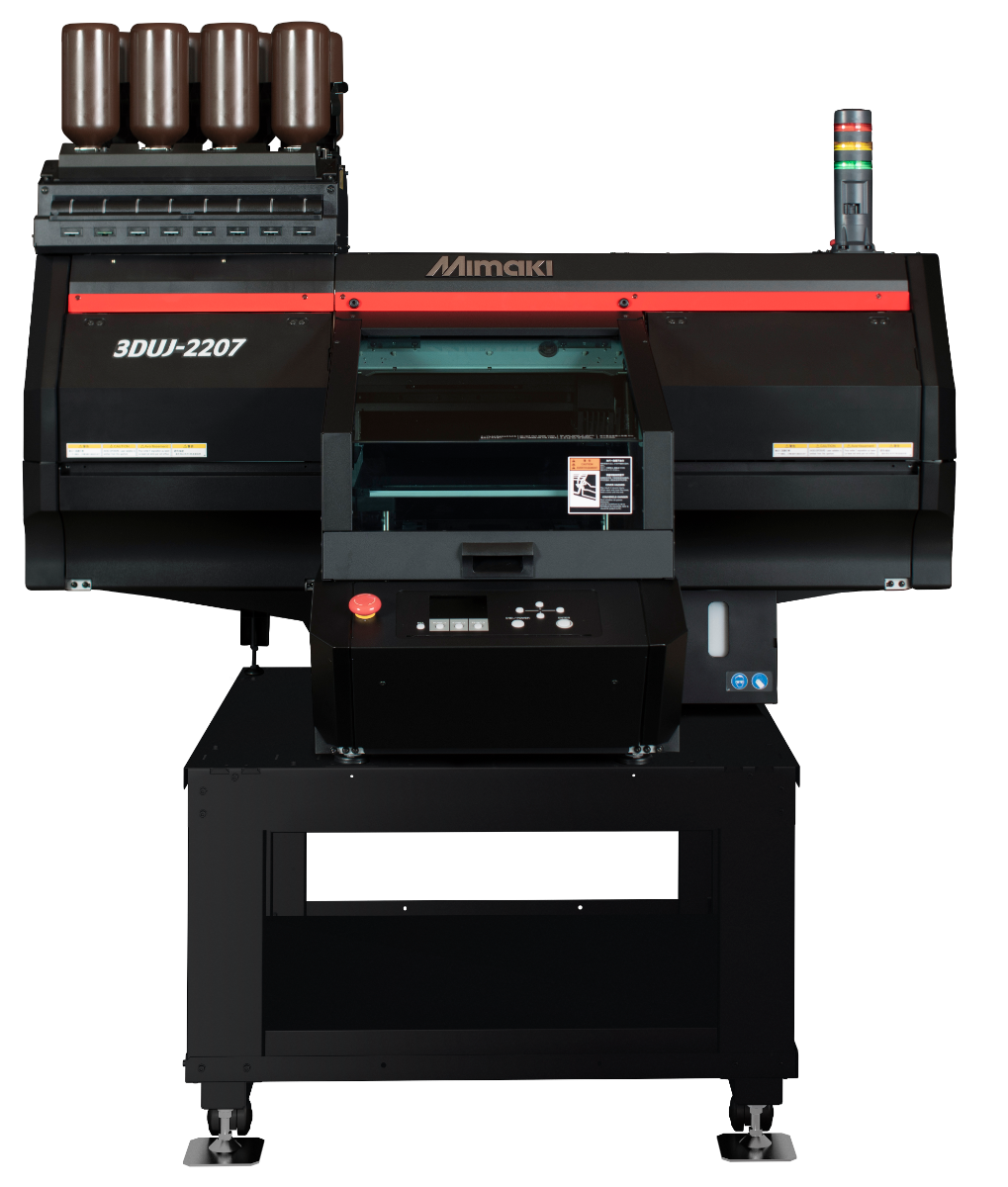

Big Color, Compact Size

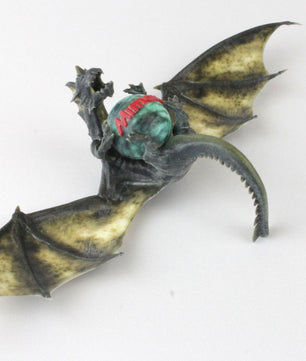

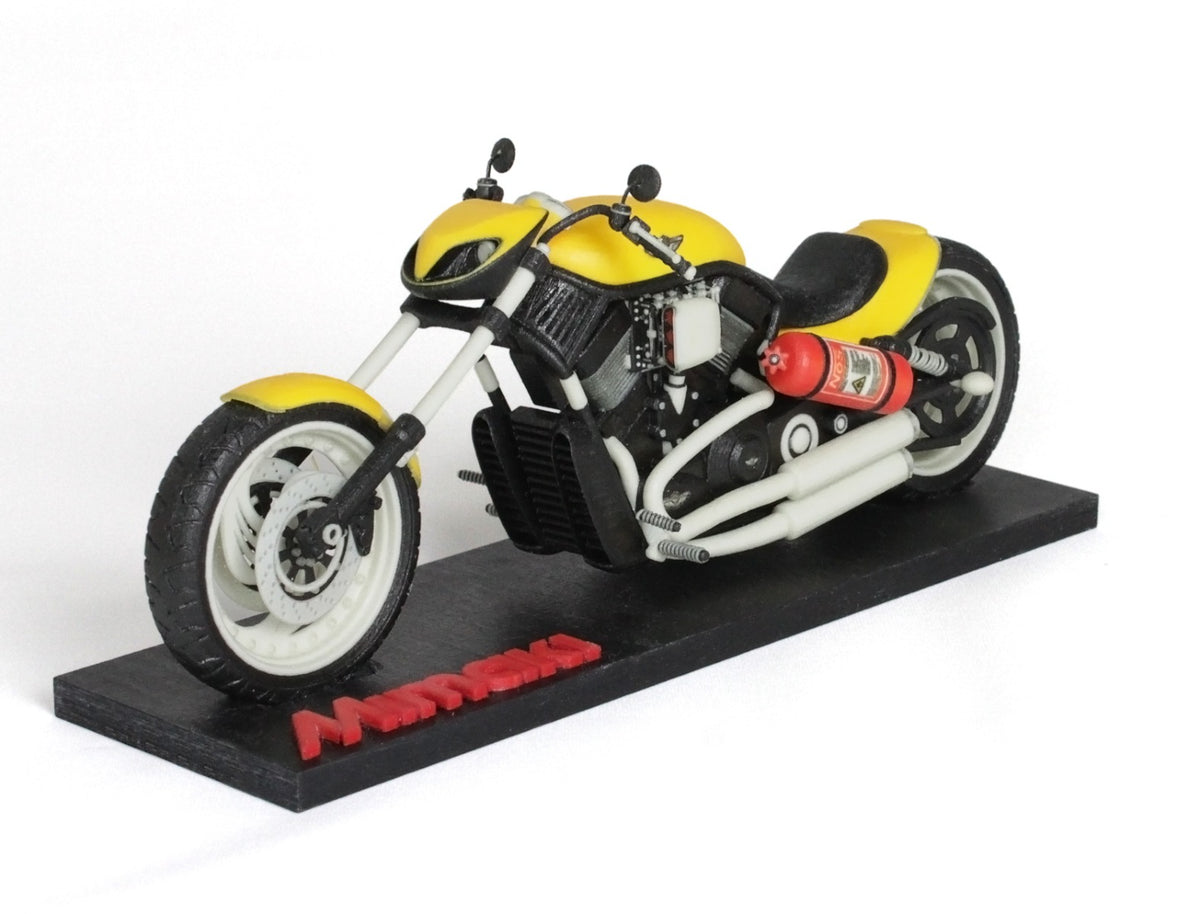

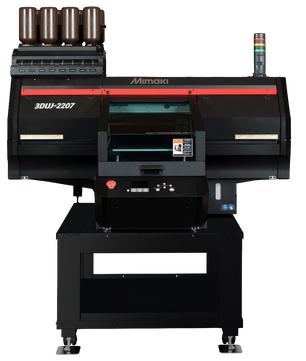

The 3DUJ-2207 is the entry-level model in Mimaki's full-color photorealistic 3D printer family, using the same printing technology and build materials as the larger 3DUJ-553. It produces more than 10 million possible color combinations through UV-curable inkjet modeling — roughly twice the color definition of binder jetting (plaster powder) methods — at a price point that makes high-definition full-color 3D printing a realistic first step.
Its smaller build area is matched with higher-resolution printheads, so image quality doesn't get traded away for compactness. The unit fits into a standard elevator without disassembly, and with an optional deodorizer and a quiet operating design, it's built to sit comfortably in an office environment rather than a dedicated production floor.
Office-Ready, Without Giving Up Color Accuracy
The same color science as the 3DUJ-553, scaled into a compact, quiet machine.
Higher-Resolution Printheads
Two printheads (420 nozzles × 4 rows each) deliver 1,200 × 1,200 dpi resolution and 28 micron layers — sharper detail to compensate for the smaller build volume.
Elevator-Friendly Footprint
Compact enough to move into upper-floor offices without disassembly, with a quiet operating design suited to shared workspaces.
Water-Soluble Support Material
Support structures wash away in water rather than requiring scraping, protecting delicate geometry during post-processing.
Clear & High-Opacity White Ink
Clear ink creates transparent and translucent effects, while high-opacity white ink supports accurate, saturated color reproduction across the full 10-million-color range. Post-processing like overcoating and drilling for mounting screws is fully supported once a model is printed.
- Clear ink for transparent and translucent effects
- High-opacity white for accurate color reproduction
- Supports post-print overcoating and hardware mounting
Ink Types
MH-100
Full-color base ink set producing more than 10 million color combinations for photorealistic modeling.
SW-110
Support material ink, water-soluble for clean removal without damaging fine detail after printing.
The same core ink chemistry used on the larger 3DUJ-553 keeps color profiles consistent as a shop scales up to bigger builds later.
Mimaki 3D Link Included
Standard Layout Software, Optional Color Profiling
Mimaki 3D Link layout software and a printer driver ship standard, supporting STL, OBJ, VRML, PLY, and 3MF files. Optional Mimaki Profile Master 3 (MPM3) software adds customizable device output ICC profiles for shops that need finer color control.
Full Specifications
Print & Modeling
| Modeling Method | UV curable inkjet system |
| Printheads | Two heads (420 nozzles × 4 rows), in-line array |
| Print Resolution | X: 1200 dpi — Y: 1200 dpi — Z: 28 micron |
| UV System | Two air-cooled LED UV curing units |
| Ink Supply | 1L bottle |
Build Area & Load Capacity
| Modeling Area | 8 x 8 x 3 in (203 x 203 x 76 mm) |
| Max. Build Weight | Less than 3 kg, including support material |
| Built-In Camera | One unit |
| Input File Formats | STL, OBJ, VRML, PLY, 3MF |
Power & Environment
| Power Supply | AC100–240V ±10%, 50/60Hz ±1Hz |
| Power Consumption (Max.) | 350W (500W with deodorizer option) |
| Noise Level | Standby: 55dB or less — Continuous operation: 65dB or less — Discontinuous operation: 70dB or less |
Interface, Certifications & Dimensions
| Interface | USB 2.0 / Ethernet 1000 BASE-T |
| Certifications | VCCI Class A, FCC Class A, IEC 62368-1 compliant ETL, CE Marking (EMC/LVD/Machinery/RoHS), CB, EAC, RCM |
| External Dimensions (W×D×H) | 53.4 x 50.8 x 33.7 in (1,355 x 1,290 x 856 mm) |
| Installation Area (W×D×H) | 77 x 90.2 x 33.7 in (1,955 x 2,290 x 856 mm) |
