Long-Range LiDAR Scanning, Without the Wires

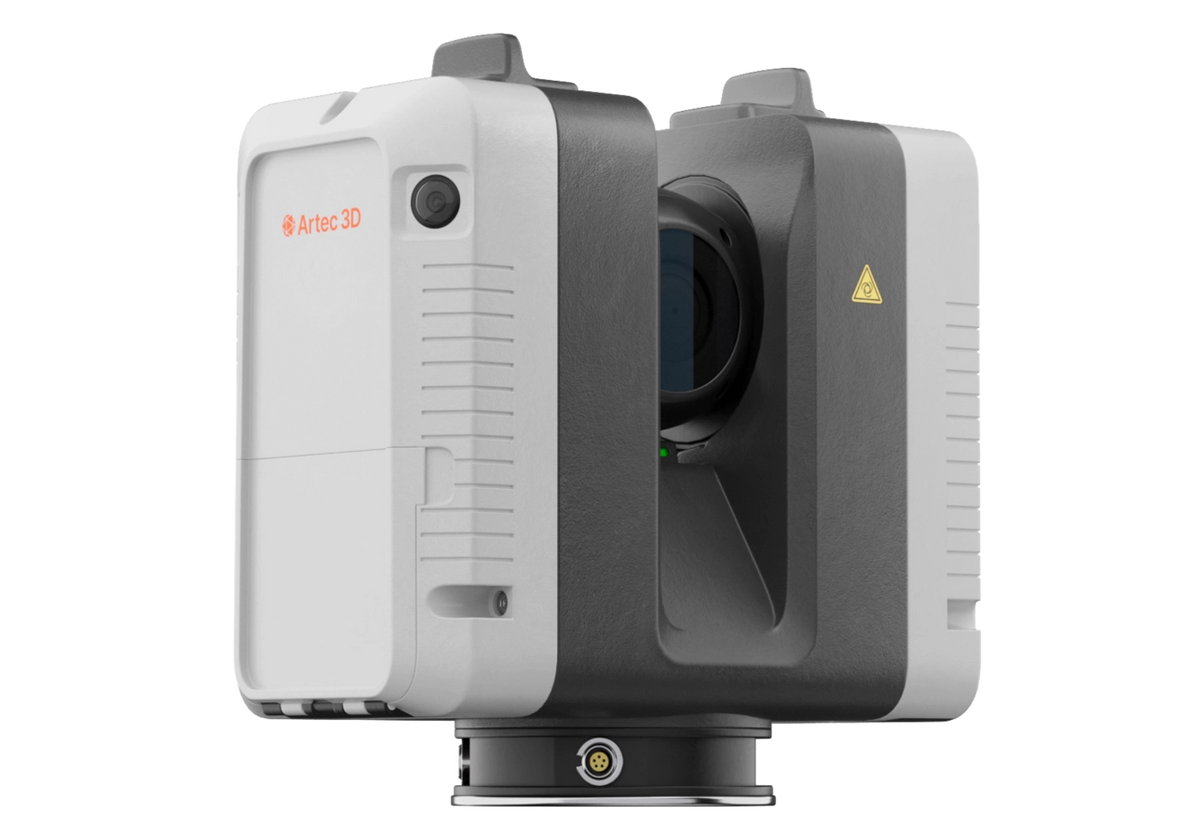

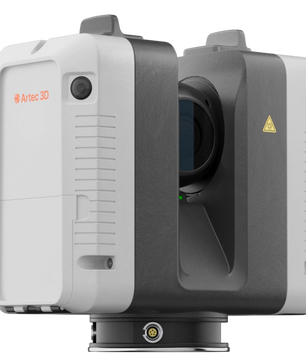

Artec Ray II is a wireless, long-range laser (LiDAR) 3D scanner for capturing large to massive objects, scenes, and areas from up to 130 m away. A full dome at the highest resolution takes about 1 minute 42 seconds, with data capture at up to 2 million points per second.
It's built for reverse engineering, inspection, digital twins, forensic documentation, heritage preservation, and infrastructure monitoring — with an onboard touchscreen so no computer is needed in the field.
Speed, Range, and Millimeter Accuracy
Capture big spaces quickly without giving up detail.
1.9 mm Accuracy at 10 m
3D point accuracy of 1.9 mm at 10 m, 2.9 mm at 20 m, and 5.3 mm at 40 m, with user-selectable resolution of 3, 6, or 12 mm at 10 m.
0.5–130 m Range
A 360° horizontal and 300° vertical field of view covers entire scenes from a single scanner position.
Targetless Registration
A Visual Inertial System, IMU, altimeter, compass, and GNSS align point clouds in real time without targets.
Available Models
Artec Ray II is offered as a single model.
Artec Ray II
Best for: large-scale scanning of buildings, sites, vehicles, and infrastructure.
- Artec Ray II LiDAR scanner
- Rechargeable Li-Ion batteries (hot-swappable)
- AC adapter
- 256 GB exchangeable USB 3.0 flash drive
- Free Artec Remote app for iOS and Android
- 1-year warranty
Built for Long Days in the Field
Hot-swappable batteries let you keep scanning without powering down, and an IP54 rating protects against dust and water. A “Double Scan” method removes objects that enter or leave the scene while you capture.
- Swap batteries while scanning
- IP54 dust and water protection
- Class 1 invisible laser (1550 nm), eye-safe
Resolution & Color
Selectable Resolution
Choose 3, 6, or 12 mm at 10 m — from a full textured dome in about 1 min 26 sec at 12 mm to the finest detail at 3 mm.
36 MP Color with HDR
A 3-camera system with automatic 5-bracket HDR captures textured scans and a calibrated spherical image.
Used for aerospace, automotive, digital twins, forensics, quality inspection, heritage preservation, civil infrastructure, and archaeology.
Touchscreen & Remote App Control

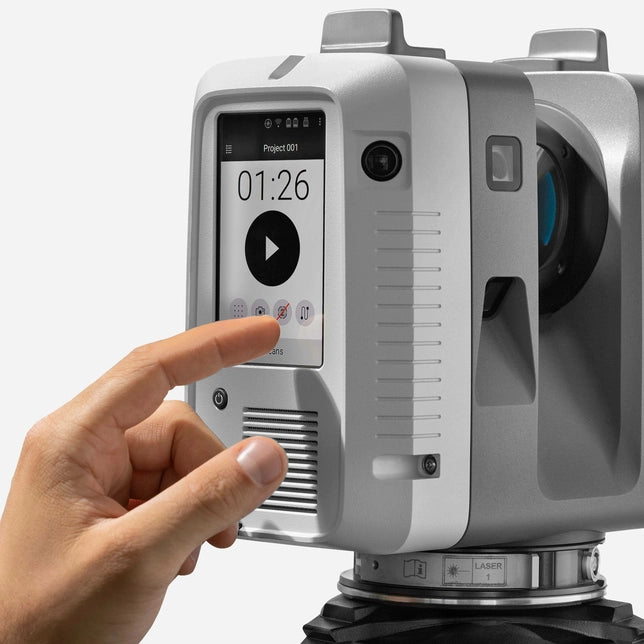

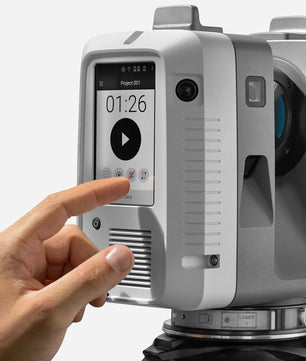

Scan Without a Computer
A full-color onboard touchscreen and the free Artec Remote app control scans from the field. Data exports to Artec Studio, Geomagic Control X, and CAD software, and pairs with Artec Leo for combined scanning.
Full Specifications
Accuracy & Speed
| 3D Point Accuracy | 1.9 mm @ 10 m • 2.9 mm @ 20 m • 5.3 mm @ 40 m |
| Angular Accuracy | 0.87 mm @ 10 m (18 arcseconds) |
| Range Accuracy | 1.0 mm + 10 ppm |
| Range Noise | 0.4 mm @ 10 m • 0.5 mm @ 20 m |
| Resolution Settings | 3, 6, or 12 mm @ 10 m (user selectable) |
| Scan Time @ 3 mm (10 m) | 1 min 42 sec without texture • 2 min 42 sec with texture |
| Scan Time @ 6 mm (10 m) | 51 sec without texture • 1 min 51 sec with texture |
| Scan Time @ 12 mm (10 m) | 26 sec without texture • 1 min 26 sec with texture |
| Data Capture Speed | Up to 2 million points/s |
Range, Field of View & Color
| Range | 0.5–130 m |
| Field of View | 360° horizontal / 300° vertical |
| Camera | 36 MP, 3-camera system (432 MPx raw data for a calibrated spherical image) |
| HDR | Automatic, 5 brackets |
| Scanning Technology | Time of flight, enhanced by Waveform Digitizing (WFD) |
| Laser | Class 1 (IEC 60825-1:2014), 1550 nm, invisible |
Hardware & Power
| Dimensions | 120 × 240 × 230 mm (4.7" × 9.4" × 9.1") |
| Weight | 5.35 kg (11.7 lb) nominal, without batteries |
| Display | Full-color WVGA touchscreen, 480 × 800 px |
| Mobile Control | Artec Remote app (iOS and Android) |
| Wireless | Integrated Wi-Fi (802.11 b/g/n) |
| Storage | AS256, 256 GB exchangeable USB 3.0 flash drive |
| Internal Battery | 2 × AEB364 rechargeable Li-Ion batteries, hot-swappable |
| Battery Runtime | Typically up to 4 hours per battery set |
| External Power | GEV282 AC adapter |

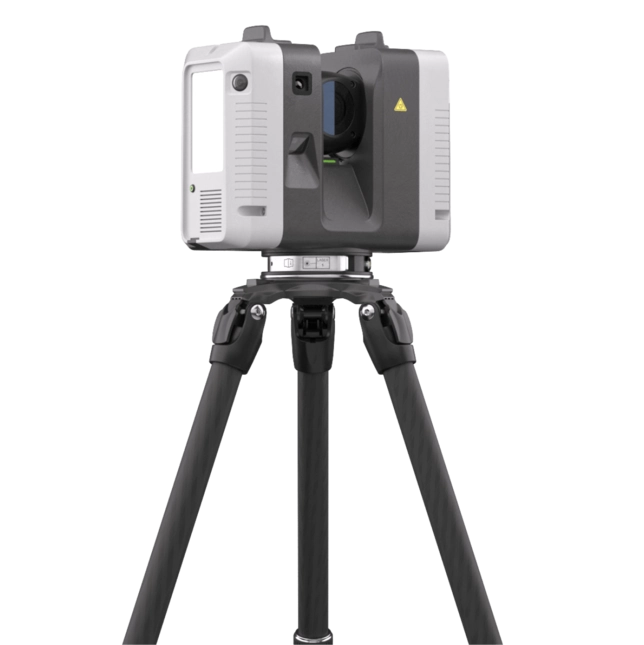

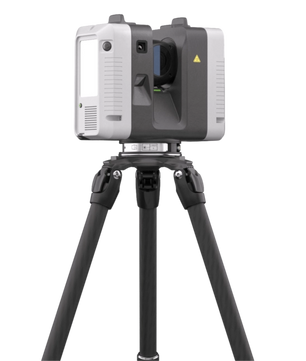

| Mounting | Quick mount on a 5/8" stub, on a lightweight carbon tripod or tripod adapter |
Navigation & Environment
| Registration | Automatic point cloud alignment via Visual Inertial System (video-enhanced IMU) |
| Tilt Sensing | IMU-based, 18 arcseconds, upright and upside-down setups within ±10° |
| Geolocation | Altimeter, compass, and GNSS |
| Operating Temperature | −5° to +40°C (extended low-temperature operation to −10°C under specified conditions) |
| Storage Temperature | −40° to +70°C |
| Ingress Protection | IP54 (IEC 60529), upright and upside-down setups within ±15° |
| Warranty | 1 year |
