Metrology-Grade Laser Scanning in Your Hand
Artec Point II is a handheld, target-based 3D laser scanner built for ISO-certified, metrology-grade measurement with accuracy of up to 0.02 mm. It's designed for quality control and reverse engineering, including complex, black, and reflective surfaces.
Repeatable results across operators — without manual tuning — make it a practical fit for inspection teams that need dependable data every time.
Precision, Speed, and Reach
Accuracy and tracking built for demanding inspection work.
Up to 0.02 mm Accuracy
Up to 0.02 mm resolution and accuracy, with 3D accuracy over distance of 0.015 mm + 0.015 mm/m when paired with the Artec Metrology Kit.
Up to 120 FPS Capture
A capture rate of up to 120 FPS with tracking that compensates for fast or abrupt movement, plus up to 5.8 million measurements per second.
Three Scanning Modes
Ultra-fast, hyper-fine, and deep hole modes let one scanner cover large surfaces, fine engraved detail, and deep grooves.
Available Models
Artec Point II is offered as a single model.

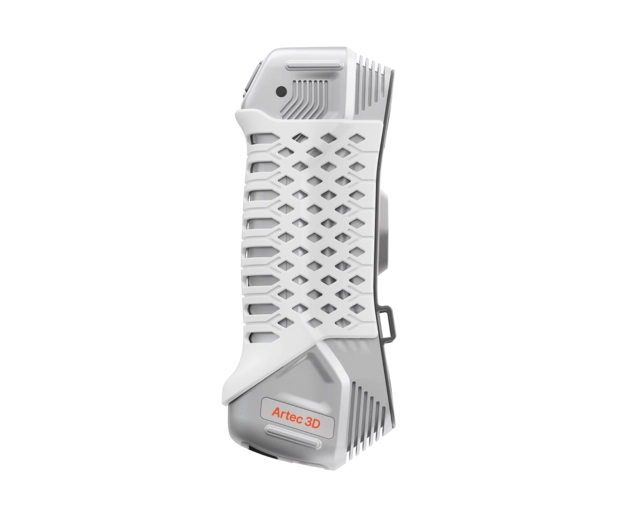

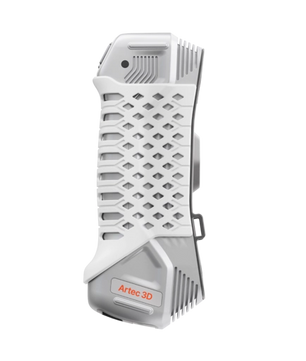

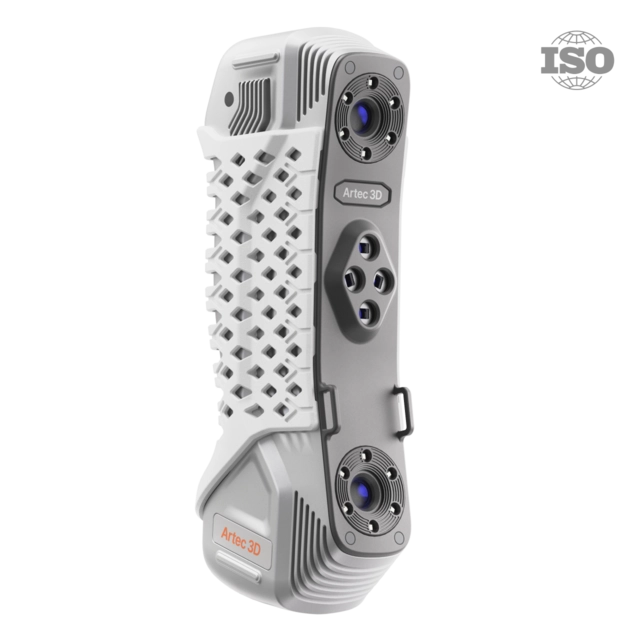

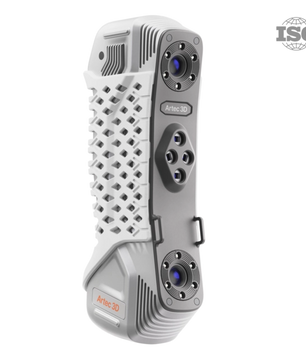

Artec Point II
Best for: quality control and reverse engineering on complex, black, and reflective parts.
- Handheld Artec Point II 3D laser scanner
- Target-based scanning — targets are applied to the object
- Processing in Artec Studio
- 1-year warranty
Built Tough, Certified to Standard
A metal casing, IP50 dust protection, and an efficient cooling system keep Point II reliable through long inspection sessions. Calibration and testing are performed at an ISO 17025-accredited lab to VDI/VDE 2634 and JJF 1951 standards.
- Class II blue laser, eye-safe
- Operating range of −10 to 40°C
- Lightweight, one-handed use that tilts into tight spaces
Scanning Modes
Ultra-Fast Scanning
54 blue laser lines cover large objects quickly with a lower polygon count.
Hyper-Fine Scanning
17 parallel blue laser lines capture fine detail, such as engraved features.
A third deep hole mode uses a single blue laser line to reach deep grooves and holes.
Inspection-Ready Software
Artec Studio with Built-In Inspection Tools
Get real-time 3D feedback, 3D Compare Map and Tolerance Checking, CAD comparison, and one-click export to Geomagic Control X or PolyWorks Inspector — plus AI Photogrammetry for texture.
Full Specifications
Resolution & Accuracy
| Resolution | Up to 0.02 mm |
| Accuracy | Up to 0.02 mm |
| 3D Accuracy Over Distance | Up to 0.015 mm + 0.035 mm/m; 0.015 mm + 0.015 mm/m with Artec Metrology Kit |
| Certification | ISO 17025 accredited, based on VDI/VDE 2634 and JJF 1951 |
Scanning Range & Speed
| Object / Area Size | S–L |
| Working Distance | > 300 mm |
| Linear FOV (H × W) at Furthest Range | Up to 700 × 600 mm |
| Depth of Field | 550 mm |
| 3D Reconstruction Rate (Real-Time Fusion) | Up to 120 fps |
| Data Acquisition Speed | Up to 5.8 million measurements/s |
| Ultra-Fast Scanning | 54 blue laser lines |
| Hyper-Fine Scanning | 17 parallel blue laser lines |
| Deep Hole Scanning | 1 single blue laser line |
Hardware & Build
| Scanner Type | Handheld, target-based |
| 3D Light Source | Class II blue laser (eye-safe) |
| Power Source | AC/DC power adapter, 24 V |
| Interface | USB 3.0 |
| Dimensions (H × D × W) | 203 × 80 × 44 mm |
| Weight | 0.57 kg (570 g) |
| Dust Protection | IP50 |
| Operating Temperature | −10 to 40°C |
| Warranty | 1 year |
Software & System Requirements
| Software | Artec Studio |
| Supported OS | Windows 10, 11 |
| Processor | Intel, 8 cores / 16 threads, 2.6 GHz+ |
| RAM | Minimum 32+ GB; recommended 64+ GB |
| GPU | Minimum 4 GB VRAM; recommended 8 GB VRAM |
| Mesh Export Formats | OBJ, PLY, WRL, STL, AOP, ASC, Disney PTX (PTEX), E57, XYZRGB |
| CAD Export Formats | STEP, IGES, X_T |
| Measurement Export Formats | CSV, DXF, XML |
