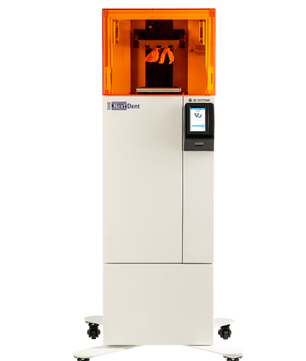

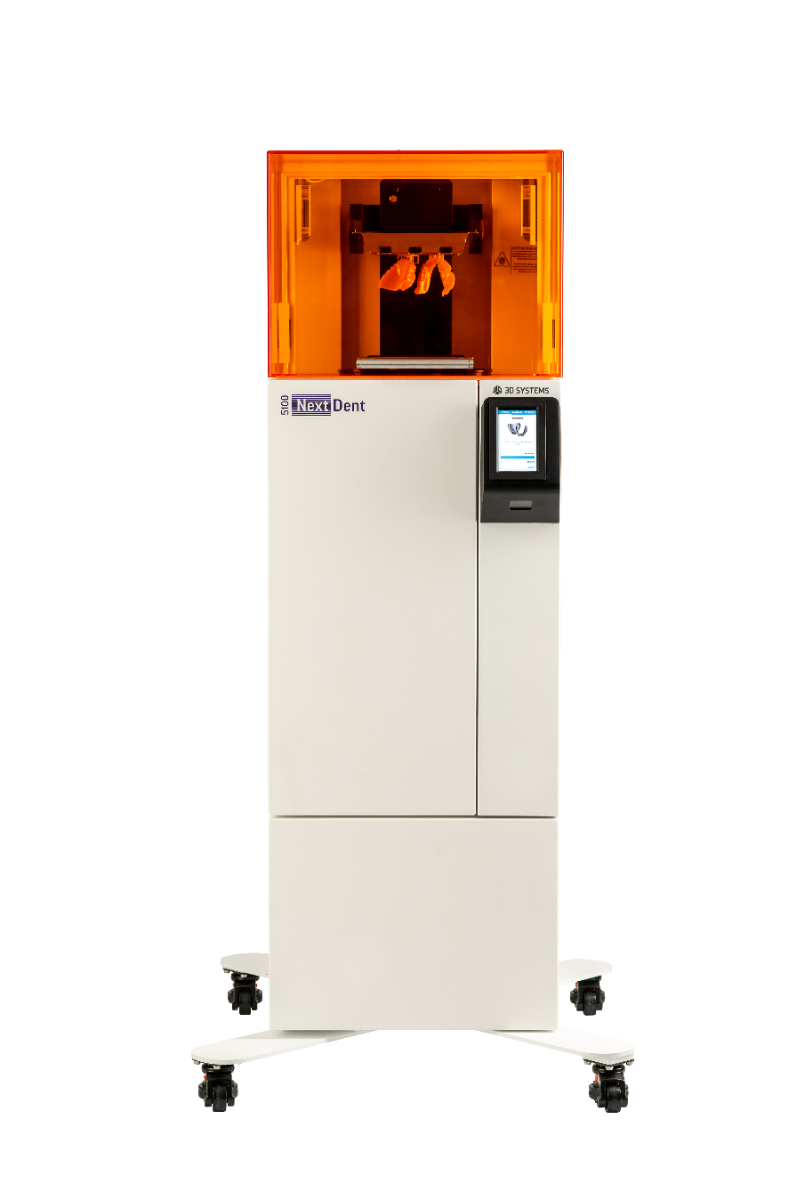

NextDent 5100 3D Printer
Nota3D provides comprehensive point-of-care solutions, including software, 3D printers, and materials that seamlessly integrate into your healthcare workflow. Buying software, printers, and materials from a single source gives you peace of mind and guarantees that everything works well together.
- Patient-specific guides and models
- Segment and design models easily
- End-to-end control of the process
- Manufacture in-house
Physical Dimensions
- Printer Footprint (W x D x H)
With Pedestal: 64.4 × 66.8 × 136.3 cm (25.4 × 26.3 × 53.6 in)
- Printer Weight: 34.5 kg (76 lbs)
- Pedestal Weight: 21.8 kg (48 lbs)
Build & Resolution
- Build Volume (X × Y × Z): 124 × 70 × 195 mm (4.88 × 2.76 × 7.67 in)
- Native Resolution: 65 microns (390.77 effective DPI)
- Light Source: 405 nm projector wavelength
Material & Processing
- Material Packaging: Opaque, non-reactive containers
- Post-Processing: Requires NextDent LC-3DMixer for material stirring and NextDent LC-3DPrint Box for UV post-curing (sold separately)
Software & Connectivity
- File Input (to 3D Sprint): Supports all major 3D model file types
- File Output (to Printer): .f4x file format
- Network: Built-in Ethernet (Internet connection required)
Power & Electrical
- Electrical Requirements: 100–240 VAC, 50/60 Hz, 4.0 A
- Fuse Specifications: T5A / 250 V

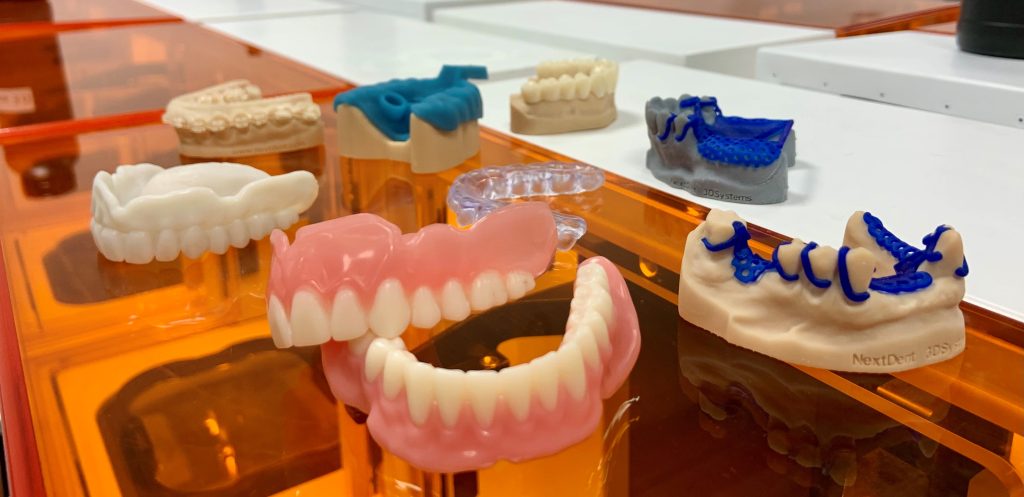

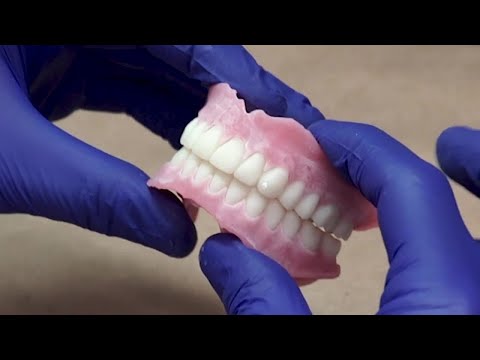

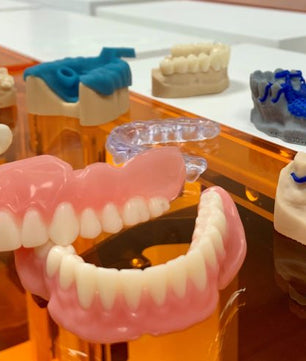

- Removable denture bases/Full & Partial Dentures
- Try-in devices
- Long-term temporaries
- Indirect Bonding Trays for orthodontic applications
- Splints
- Prosthodontic models/Orthodontic models
- Custom trays
- Gingiva Masks for implant models
- Castable parts
- Surgical Guides
- Part of a complete workflow with NextDent materials, 3D Sprint® software, and post-processing
- Accuracy, repeatability, unmatched productivity, and low total cost of operations
- Flexibility to address multiple indications with a range of NextDent materials for medical and non-medical devices
- This complete solution represents industry-defining materials and print innovation, dental domain expertise, and regulatory compliance in all major markets to revolutionize your workflow
