Ultra-High-Resolution Handheld Scanning

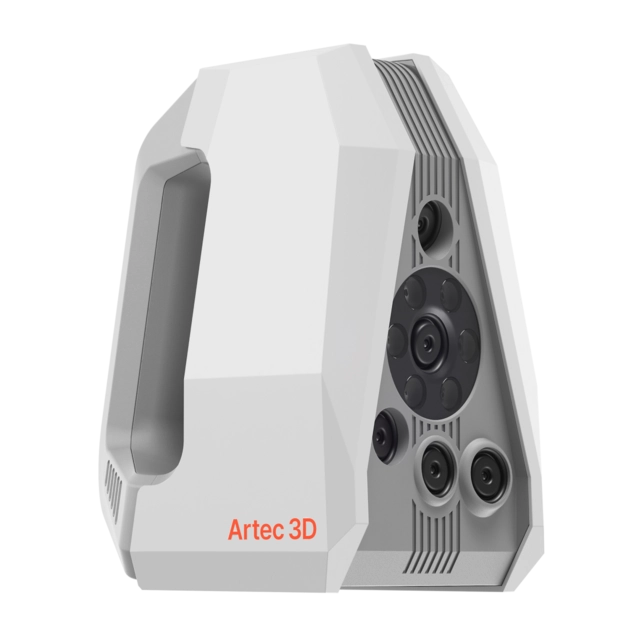

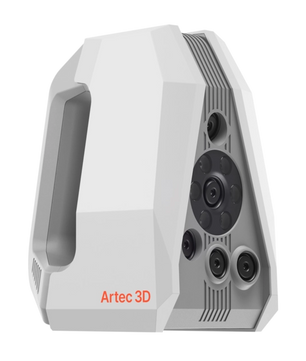

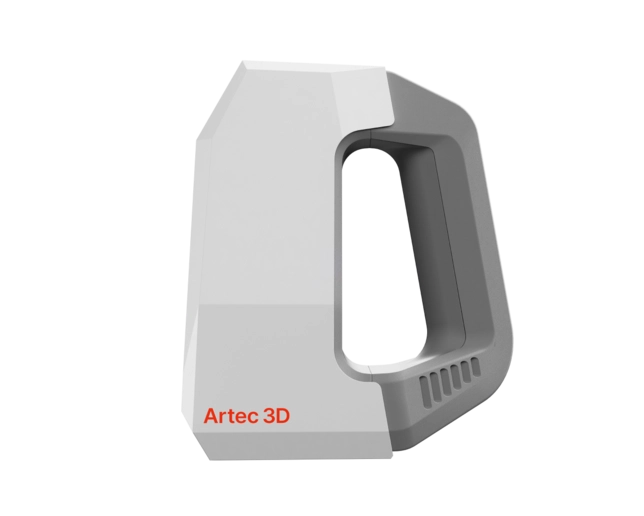

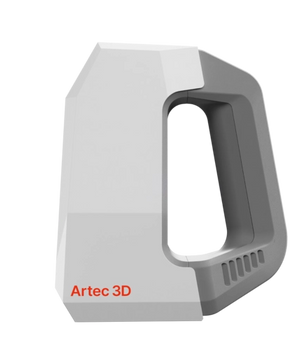

Artec Spider II is a handheld, high-resolution 3D scanner for capturing small objects and the fine details of larger industrial parts in full color. Blue-light structured-light capture delivers up to 0.05 mm resolution and accuracy, with no targets and no contact with the object.
It's built for reverse engineering, quality inspection, scan-to-CAD, digital twins, product development, and documentation across manufacturing, automotive, healthcare, forensics, and art and design.
Fine Detail, Fast Capture
Resolution and speed in a lightweight, portable body.
Up to 0.05 mm Accuracy
Up to 0.05 mm resolution and accuracy, with 3D accuracy over distance of up to 0.05 mm + 0.3 mm/m.
30 FPS, 8 Million Points/s
Up to 30 fps real-time fusion and up to 8 million points per second of data acquisition.
Target-Free & Contact-Free
No targets to apply and no contact with the object saves setup time and suits medical, forensic, and restricted settings.
Available Models
Every package includes the same Artec Spider II scanner. What changes is what ships with it.
Artec Spider II
Best for: precision handheld scanning of small parts and fine detail.
- Artec Spider II 3D scanner
- Exact package contents confirmed at time of order
Artec Spider II Premium
Best for: full-featured, long-term scanning with coverage and software included.
- Artec Spider II 3D scanner
- Battery and turntable
- 5-year Hot Swap contract
- 5-year warranty
- 5-year Artec Studio subscription
- Access to the Artec Academy platform
Artec Spider II Education
Best for: schools, universities, and training teams.
- Designed for educational institutions
- Same Artec Spider II scanner
- Package contents confirmed with Artec at time of order
Repeatable Results, Every Scan
Temperature stabilization brings the scanner to its optimal operating temperature for repeatable results, and it's designed to handle black and shiny surfaces, deep holes, and sharp edges. Data can be merged with other Artec scanners in Artec Studio.
- 450 nm blue-light structured-light capture
- 5 MP full-color texture with hybrid geometry and texture tracking
- Lightweight at just 0.95 kg
Capture Range & Texture
Close-Range Capture
A 0.19–0.3 m working distance and 1,800 cm³ capture zone, with a field of view from 128 × 104 mm to 171 × 152 mm.
5 MP Full Color
24-bit color with white LED texture illumination (CRI > 95, 4000 K) for true-to-life surface detail.
Used for reverse engineering, quality inspection, prosthetics and medical equipment, forensics, art and design, and CGI/VFX.
Artec Studio Software
Autopilot or Custom Workflows
Artec Studio offers an automated Autopilot workflow or fully custom processing, with scan-to-CAD features and annual updates.
Full Specifications
Artec Spider II is available in Standard, Premium, and Education packages. The scanner specifications below apply to every package.
Resolution & Accuracy
| Resolution | Up to 0.05 mm |
| Accuracy | Up to 0.05 mm |
| 3D Accuracy Over Distance | Up to 0.05 mm + 0.3 mm/m |
| Target-Free Technology | Yes |
| Tracking | Hybrid geometry and texture tracking |
Scanning Range & Speed
| Object / Area Size | S–M |
| Working Distance | 0.19–0.3 m |
| Volume Capture Zone | 1,800 cm³ |
| Linear FOV (Closest Range) | 128 × 104 mm |
| Linear FOV (Furthest Range) | 171 × 152 mm |
| Depth of Field | 110 mm |
| 3D Reconstruction Rate (Real-Time Fusion) | Up to 30 fps |
| Data Acquisition Speed | Up to 8 million points/s |
Hardware & Texture
| Scanner Type | Handheld |
| Texture Resolution | 5 MP |
| Color Depth | 24 bpp |
| 3D Structured-Light Source | 450 nm LED |
| Texture Illumination | White LED, CRI > 95, 4000 K |
| Power Source | AC/DC power adapter, DC 24 V |
| Interface | Compatible with Thunderbolt 4 hosts |
| Dimensions (H × D × W) | 187 × 156 × 118 mm |
| Weight | 0.95 kg / 2.1 lbs |
| Warranty | 2 years |
Software & System Requirements
| Software | Artec Studio (Autopilot and custom workflows) |
| Supported OS | Windows 10 x64, Windows 11 |
| Recommended Computer | 13th or 14th Gen Intel Core i7 or i9, RTX 4070 8 GB |
| Minimum Computer | 12th Gen Intel Core i9, RTX 4060 8 GB |
| Mesh Export Formats | OBJ, PLY, WRL, STL, AOP, ASC, Disney PTX (PTEX), E57, XYZRGB |
| CAD Export Formats | STEP, IGES, X_T |
| Measurement Export Formats | CSV, DXF, XML |
