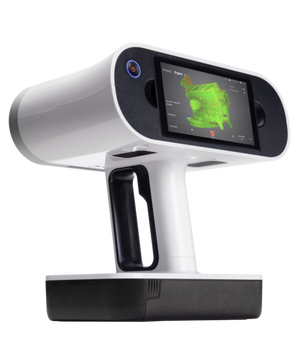

Wireless, Standalone Professional 3D Scanning
Artec Leo is a wireless, fully standalone professional 3D scanner with an onboard computer, touchscreen, and battery. No computer, power cable, or data cable is needed to scan, and scans can be sent to the cloud over Wi-Fi.
It's built for reverse engineering, quality inspection, industrial design, healthcare, art and design, and science and education — from gearboxes and castings to statues, furniture, and room interiors.
Fast, Smart, and Self-Contained
Onboard processing and AI keep you scanning instead of waiting.
Up to 0.1 mm Accuracy
Up to 0.1 mm 3D point accuracy and 0.2 mm resolution, with up to 35 million points per second of data acquisition.
Onboard Processing

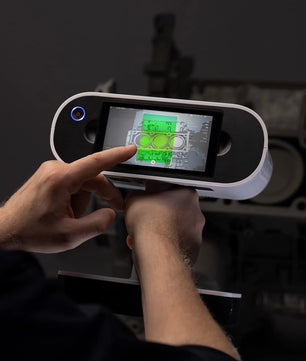

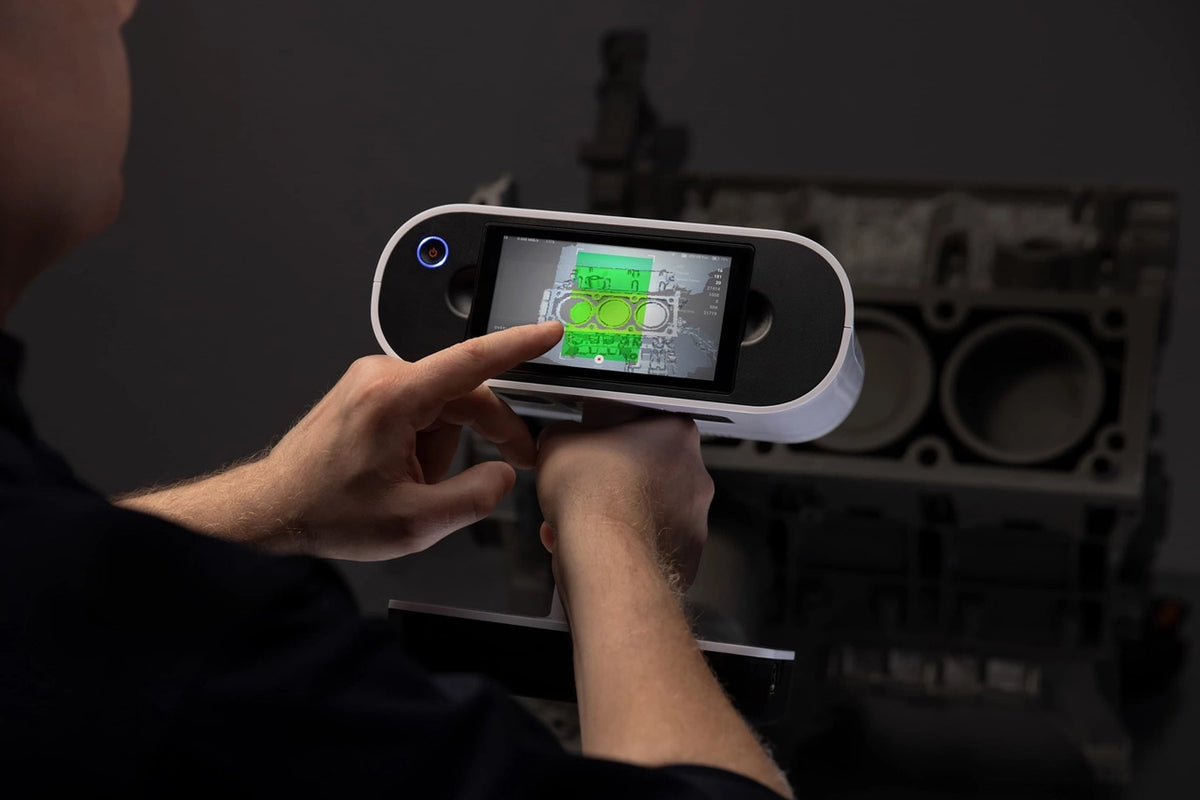

An NVIDIA Jetson TX2 processes data in real time, with a 5.5" tilting touchscreen showing a live 3D preview and scan-quality cues.
HD Mode & AI Capture
AI-based HD Mode doubles resolution compared with SD data, while proprietary AI captures only the data you need to cut cleanup time.
Available Models
Every package includes the same Artec Leo scanner. What changes is what ships with it.
Artec Leo
Best for: field-ready, portable scanning with everything needed to start.
- Leo 3D scanner and Leo Calibration Kit
- 2 batteries and battery charger
- Backpack
- 5-year Hot Swap contract
- 5-year warranty
- 5-year Artec Studio subscription
- Access to the Artec Academy platform
Artec Leo Premium Pack
Best for: long-term coverage and software included.
- Leo 3D scanner and Leo Calibration Kit
- 2 batteries and battery charger
- 5-year warranty
- 5-year Artec Care
- 5-year Artec Studio subscription
Artec Leo Education
Best for: schools, universities, and training teams.
- Designed for educational institutions
- Same Artec Leo scanner
- Package contents confirmed with Artec at time of order
Scan Anywhere, Even in Sunlight
A Class 1 laser pattern projection supports outdoor use, while auto temperature control, a calibration certificate, and a Leo Calibration Kit help maintain accuracy. Browser-based remote control, an API, and an SDK extend Leo into custom workflows.
- Target-free hybrid geometry and texture tracking
- Distance color map and surface quality indicator guide scanning
- Interface available in six languages
Capture Zone & Texture
Wide Capture Zone
A working distance of 0.35 to 1.2 m and a 160,000 cm³ volume capture zone handle medium to large objects with ease.
2.3 MP Color Texture
24-bit color with automatic brightness adjustment at close range, plus support for photogrammetry with external photos.
Medium (20–50 cm) and large (50–200 cm) objects work best; whole rooms and very large objects are possible with a powerful computer.
Artec Studio & Artec Cloud
From Scan to Model, Wirelessly
Leo works with Artec Studio for processing and Artec Cloud for sharing, and scans can be sent to the cloud over Wi-Fi without tethering to a computer.
Full Specifications
Artec Leo is available in Standard, Premium, and Education packages. The scanner specifications below apply to every package.
Scanning Performance
| 3D Point Accuracy | Up to 0.1 mm |
| 3D Resolution | Up to 0.2 mm |
| 3D Accuracy Over Distance | Up to 0.1 mm + 0.3 mm/m |
| Real-Time Fusion Reconstruction | Up to 22 fps |
| 3D Video Recording Reconstruction | Up to 44 fps |
| 3D Video Streaming Reconstruction | Up to 80 fps |
| Data Acquisition Speed | Up to 35 million points/s |
| 3D / 2D Exposure Time | 0.0002 s |
| Algorithms | HD Mode, hybrid geometry and texture tracking, auto background removal |
Capture Zone & Texture
| Working Distance | 0.35 to 1.2 m |
| Volume Capture Zone | 160,000 cm³ |
| Linear FOV (H × W), Closest Range | 244 × 142 mm |
| Linear FOV (H × W), Furthest Range | 838 × 488 mm |
| Angular FOV (H × W) | 38.5 × 23° |
| Texture Resolution | 2.3 MP |
| Color Depth | 24 bpp |
| 3D Light Source | VCSEL, 808 nm, Class 1 |
| 2D Light Source | White 12-LED array |
Hardware & Power
| Display | Integrated 5.5" half HD capacitive touchscreen, with optional Wi-Fi / Ethernet video streaming to an external device |
| Processor | NVIDIA Jetson TX2, quad-core ARM Cortex-A57, 256-core NVIDIA Pascal GPU, 8 GB RAM |
| Internal Storage | 512 GB SSD |
| Position Sensors | Built-in 9 DoF inertial system |
| Interfaces | Wi-Fi, Ethernet |
| Power | Built-in exchangeable battery; optional AC power |
| Dimensions (H × D × W) | 231 × 162 × 230 mm |
| Weight | 2.6 kg (5.7 lb) |
Software & System Requirements
| Software | Artec Studio, Artec Cloud |
| Scanning Computer | Not required |
| Data Processing OS | Windows 8.1, Windows 10 (x64), Windows 11 |
| Recommended PC | Intel Core i7 or i9, 64+ GB RAM, NVIDIA GPU with 8+ GB VRAM, CUDA 6.0+ |
| Minimum PC (HD Mode) | Intel Core i7 or i9, 32 GB RAM, NVIDIA GPU with CUDA 6.0+ and 4+ GB VRAM |
| Minimum PC (SD Mode) | Intel Core i5, i7, or i9, 32 GB RAM, GPU with 2 GB VRAM |
| Mesh Export Formats | OBJ, PLY, WRL, STL, AOP, ASC, PTX (Disney PTEX), E57, XYZRGB |
| CAD Export Formats | STEP, IGES, X_T |
| Measurement Export Formats | CSV, DXF, XML |
