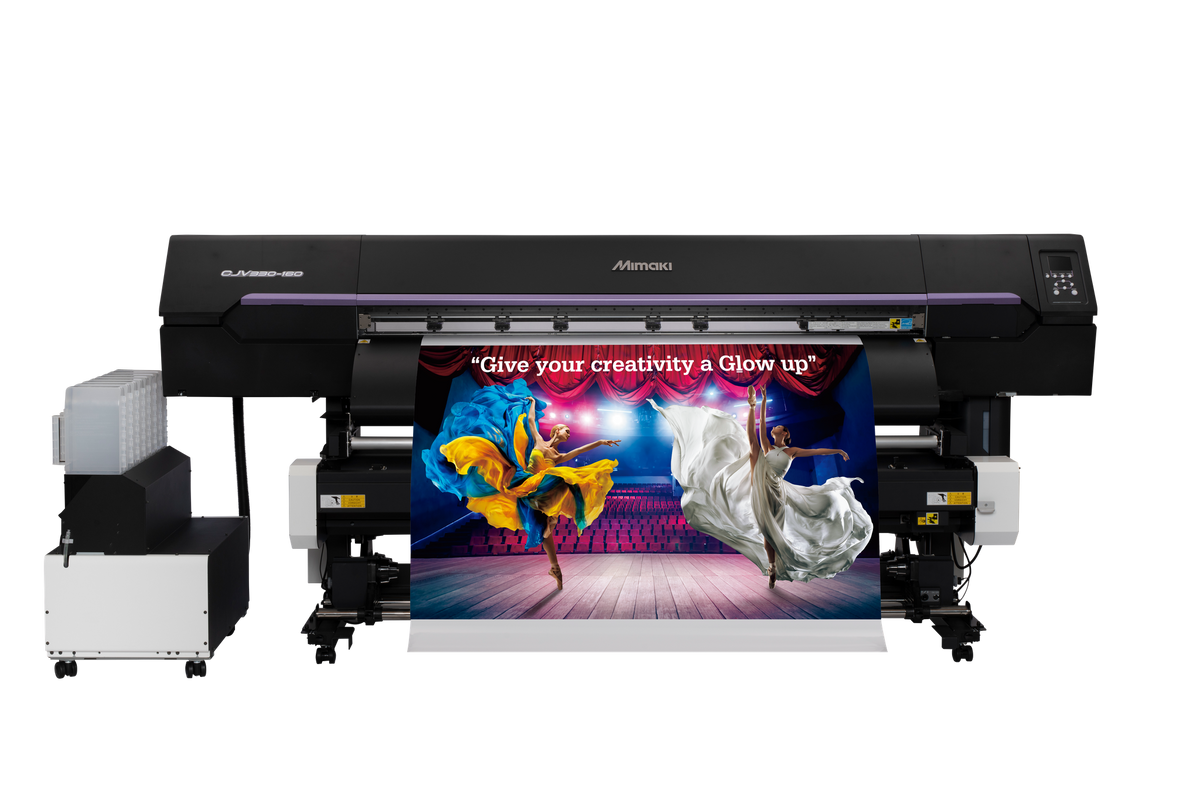

Commercial-Grade Print & Cut, Built From the Ground Up
The CJV330 Series is Mimaki's high-volume production print & cut device, compatible with Mimaki's original eco-solvent inks for commercial-level workflows and quality. It produces a wide range of sign and graphic applications — durable banners, signs, decals, and posters — for both indoor and outdoor use.
Two staggered printheads with 6,400 nozzles reach speeds up to 1,076.4 sq ft/hr, and Mimaki eco-solvent inks now qualify for the 3M™ MCS™ Warranty Program — the most comprehensive warranty in the graphics industry — when paired with SS22, SS21, or BS4 ink.
Built for High-Demand Production
Commercial-level workflows in an integrated print & cut device.
Dual Staggered Piezo Heads
6,400 nozzles deliver up to 1,076.4 sq ft/hr, backed by Mimaki Advanced Pass System (MAPS) and Variable Dot Technology to keep image quality high at speed.
Integrated XY Slitter & Media Changer
An optional integrated XY slitter and multiple media roll handling unit streamline finishing, with in-machine lighting and a V-shaped cut function rounding out the workflow.
Mimaki Remote Access
Wireless printer operation from a smartphone or tablet, so operators can monitor jobs without standing at the machine.
Best-in-Class Outdoor Durability
Combined with SS21, SS22, or BS4 eco-solvent inks — which boast the best weather resistance in the industry — CJV330 output qualifies for the 3M™ MCS™ Warranty Program, the most comprehensive, industry-wide, system-based warranty available, covering the entire finished graphic including materials, inks, and application.
- 3M™ MCS™ Warranty Program compatible
- SS21 / SS22 / BS4 inks with best-in-industry weather resistance
- Uninterrupted Ink Supply System (UISS) for continuous runs
Ink Types
SS21 / SS22 — Eco-Solvent
Cyan, Magenta, Yellow, Black plus Light Cyan, Light Magenta, Light Black, Orange, and White for extended gamut and durability.
BS4 — 4-Color
Cyan, Magenta, Yellow, Black — a leaner eco-solvent option still eligible for the 3M™ MCS™ Warranty Program.
Mimaki Bulk Ink System (MBIS) keeps the CJV330 fed through long production runs without stopping to swap cartridges.
In-Machine Lighting & V-Cut
Precision Finishing Built In
Integrated in-machine lighting improves visibility during setup, while the V-shaped cut function delivers high-precision angled trims — both aimed at reducing manual finishing work after the print job is done.
Full Specifications
Print & Ink
| Print Head | On-demand piezo head (2 staggered printheads) |
| Print Resolution | 600 / 800 / 900 / 1200 dpi |
| Print Speed (4 Color Mode) | Up to 1,076.4 sq ft/hr (100 m²/h) |
| Ink Type | SS21 Eco-Solvent (C, M, Y, K, Lc, Lm, Lk, Or, White) |
| Ink Package | 2L ink pack |
Media & Print Area
| Max. Print Width | 53.5 in (1,360 mm) / 63.4 in (1,610 mm) |
| Max. Media Width | 53.9 in (1,370 mm) / 63.8 in (1,620 mm) |
| Media Thickness | Up to 0.04 in (1.0 mm) |
| Rolled Media Weight | One roll: max. 45 kg (99.2 lb) — Three rolls: total 90 kg (198.4 lb) |
Power & Environment
| Power Supply | Single-phase AC100–120/200–240V ±10%, 50/60Hz ±1Hz × 2 |
| Power Consumption | Max. 1,440W or less ×2 / Min. 4.5W (sleep) |
| Operating Temp. | 20–30°C (68–86°F) |
| Operating Humidity | 35–65% Rh (non-condensing) |
Interface, Certifications & Dimensions
| Interface | Ethernet 1000BASE-T (recommended) / USB 2.0 Hi-speed |
| Certifications | VCCI Class A, FCC Class A, ETL IEC 62368-1, CE Marking (EMC/LVD/Machinery/RoHS), CB, REACH, Energy Star, RCM, EAC, KC, UKCA |
| Dimensions (W×D×H) | 2,920 × 1,215 × 1,305 mm / 3,170 × 1,215 × 1,305 mm |
| Weight | 363 kg (800.3 lb) / 373 kg (822.3 lb) |
