A New Standard in UV-LED Flatbed Printing

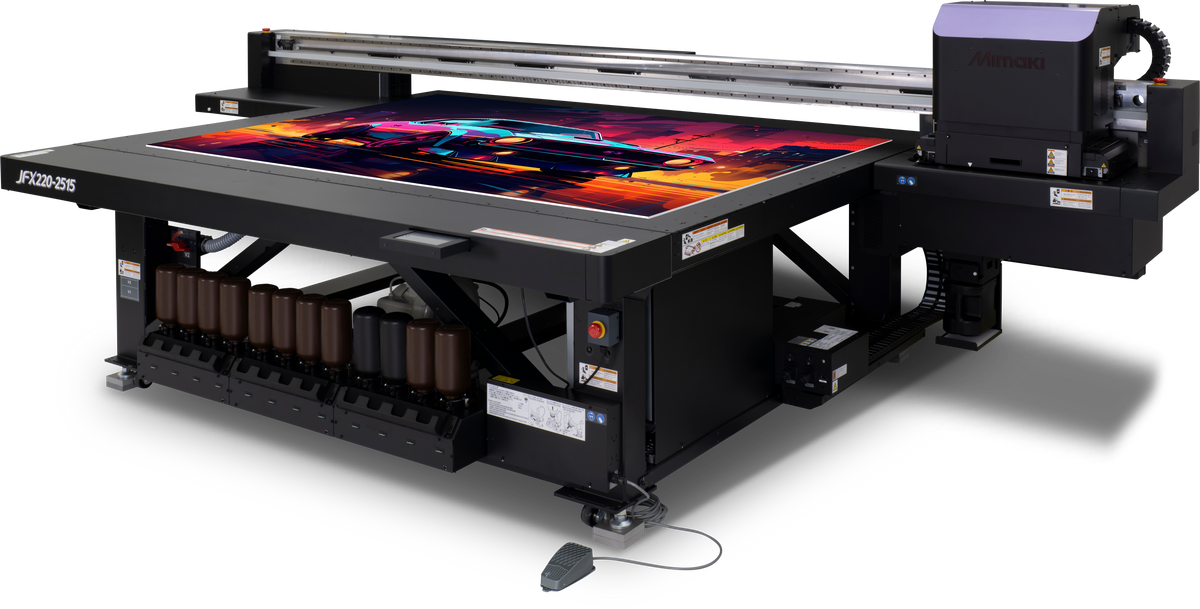

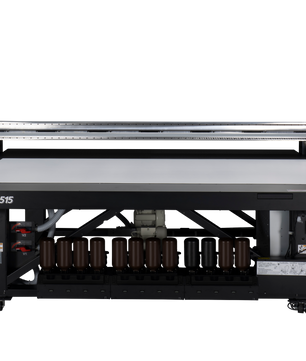

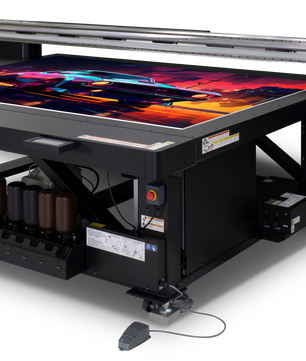

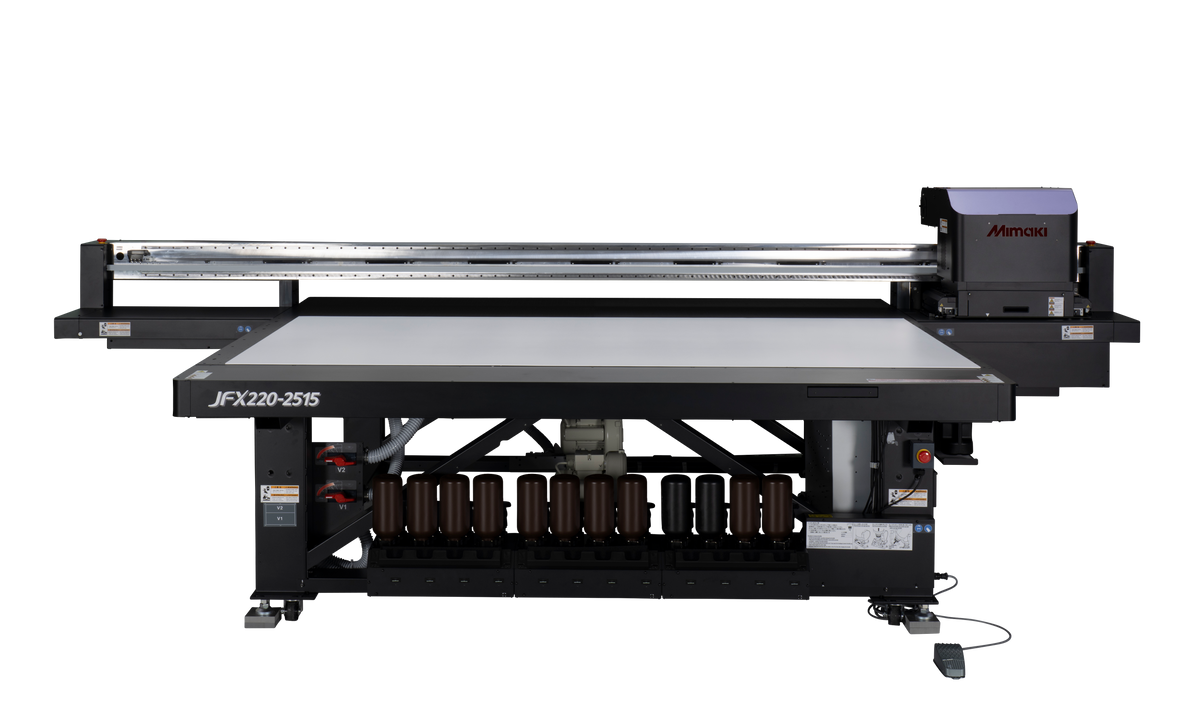

The JFX220-2515 is the newest addition to the Mimaki JFX family, slotting in between the JFX200 EX Series and the JFX600 Series. It brings an expanded 98" x 59" bed — a full 4' x 8' board with room left over for pre-cut pieces — along with automation upgrades that were previously reserved for Mimaki's higher production-class machines.
A new dual-CMYK, four-head configuration delivers up to 2x the production of the previous class at 226 sq ft/hr, while a 4" (101.6 mm) media clearance opens the door to dimensional and specialty work — from wayfinding signage to interior door and furniture components.
Built for Faster, Easier Setup
Mimaki's newest automation features cut prep time without asking operators to change how they work.
Anchor Technology
Self-masking vacuum control applies suction only where media is placed, plus pop-up edge registration pins for fast, accurate positioning — no manual masking or vacuum adjustment.
Dual-CMYK Four-Head Array
Four staggered on-demand piezo heads print up to 226 sq ft/hr in four-color mode — roughly double the output of the previous class.
Texture & Z-Lift Clearance
2.5D Texture Maker, Emboss, and Braille workflows pair with a new carriage Z-lift supporting media and objects up to 4" (101.6 mm) thick with no extra lift accessories.
SVHC-Free, GREENGUARD Gold Certified Inks
The JFX220-2515 runs on inks formulated to be SVHC-free and CMR-free, and certified GREENGUARD Gold by UL for low VOC emissions — a meaningful advantage for retail displays, interior components, and indoor signage. Fluorescent Pink and Yellow inks are also available for vivid indoor accents, including illuminated blacklight applications.
- SVHC-free and CMR-free ink formulation
- GREENGUARD Gold certified for low VOC emissions
- Fluorescent Pink and Yellow for high-impact accents
Ink Types
Standard CMYK Set
Cyan, Magenta, Yellow, Black. Low-VOC UV-LED ink for everyday signage, POP, and industrial applications.
EFS-150 — Fluorescent Ink
Fluorescent Pink and Yellow for vivid retail, promotional, and wayfinding graphics, including blacklight-enhanced displays.
Pairing the standard set with fluorescent inks lets one JFX220-2515 cover everyday board work and eye-catching promotional graphics without a machine change.
RasterLink8 Included
The Next Generation of Mimaki's RIP
The JFX220-2515 ships with RasterLink8, Mimaki's latest RIP and workflow software. It introduces enhanced job management and automated camera alignment that positions print data accurately with less manual setup, plus support for the fluorescent-color workflows this printer enables.
Full Specifications
Print & Ink
| Print Head | 4 on-demand piezo heads, staggered arrangement |
| Print Resolution | Y: 300/600/1200 dpi — X: 300/450/600/900/1200 dpi |
| Ink Type | ELH-100 (hard), ELS-120 (flexible), PR-200 (primer), EFS-150 (fluorescent) |
| Ink Configuration | CMYK — CMYK+White/Clear/Primer — CMYK+Lc+Lm+Fy+Fp+White/Clear/Primer |
| Ink Capacity | 1L / 250cc bottles |
Media & Print Area
| Max. Print Area | 2,500 x 1,500 mm |
| Max. Vacuum Hold-Down Size | 2,500 x 1,930 mm |
| Media Height | 101.6 mm (4 in) |
| Media Weight | 50 kg/m² or less |
Power & Environment
| Power Supply | Single-phase AC200–240V ±10%, Inlet 1: 12A or less / Inlet 2: 10A or less |
| Power Consumption | Inlet 1: 2.88 kVA or less — Inlet 2: 2.33 kVA or less |
| Operating Temp. | 15–30°C (59–86°F) |
| Operating Humidity | 35–65% Rh (non-condensing) |
Interface & Dimensions
| Interface | Ethernet 1000BASE-T |
| Dimensions (W×D×H) | 4,400 × 2,520 × 1,490 mm |
| Weight | 920 kg |
