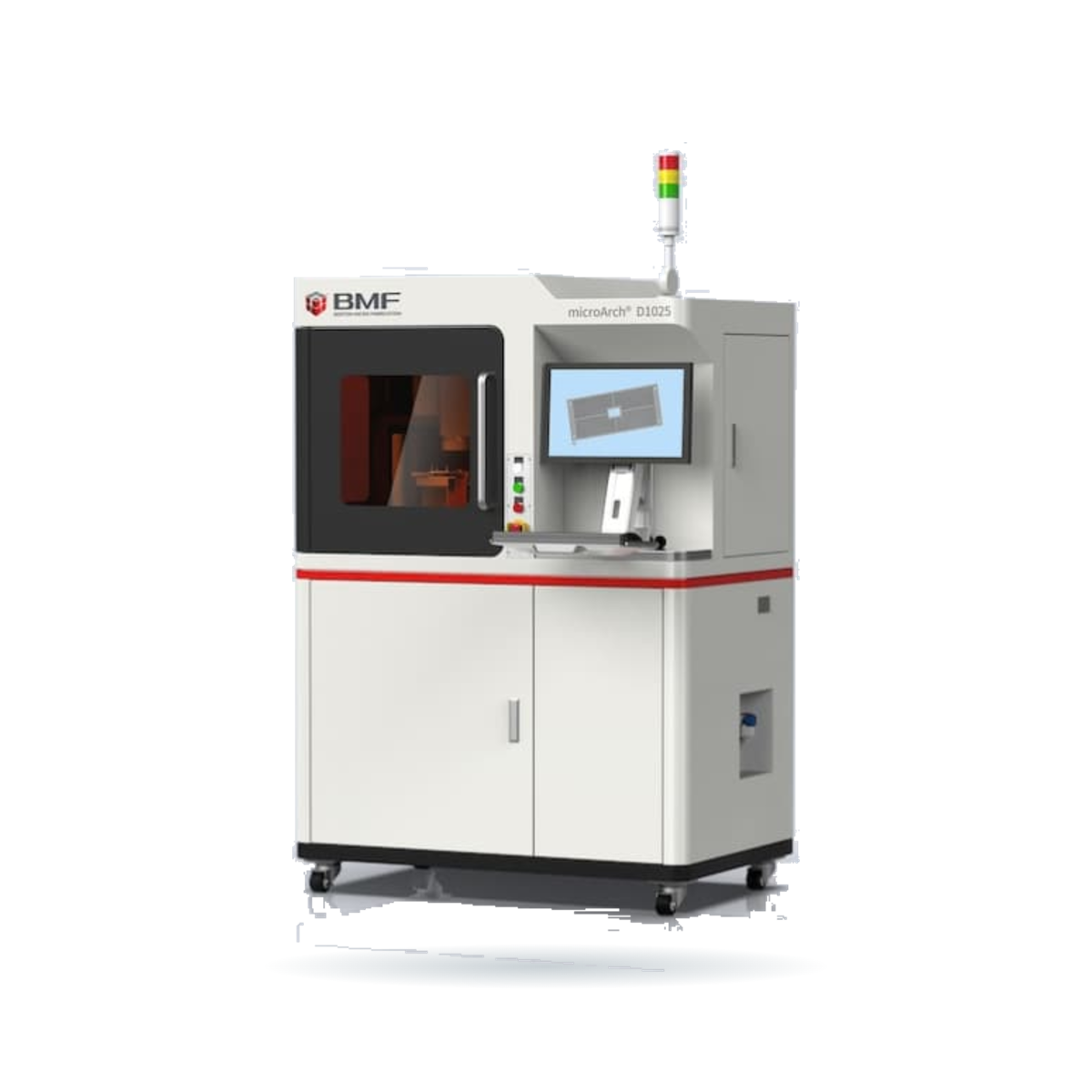

microArch D1025
Two resolutions in one printer. Print at 10µm for tight tolerances, 25µm for speed — or mix both in hybrid mode — with built-in automation that saves time, resources and cost.
- 10µm, 25µm or hybrid printing
- ±1µm XY positional accuracy
- Automatic calibration and print parameters
[Efficiency + Versatility]²
Less time. Less money. More efficiency. The D1025 gives researchers and manufacturers the flexibility of two resolutions plus the automation to make it efficient.
Increased Efficiency
Printing at the lower resolution opens up larger print zones, shortening print times when the finest detail isn’t required.
Built-in Automation
Automated calibration, print parameters and resin management bring greater speed and accuracy to the precision printing process.
Open Material System
Works with functional, engineering-grade materials, supported by a heated resin vat.
Choose Your Resolution
Precision
Use 10µm resolution for tighter tolerances and the finest feature detail.
Speed
Use 25µm resolution and larger projection zones for faster printing.
Both
Automatically switch between 10µm and 25µm within the same layer or across layers — fine detail where it matters, speed everywhere else.
Features
Improved DLP Projection
Larger projection zones deliver faster printing while maintaining high precision.
Automatic Calibration
Automatically levels the platform, membrane and roller, cutting turnaround time between builds.
Automatic Print Parameters
Sets roller frequency and resin leveling delay based on print area and material viscosity — with manual control available.
Automatic Resin Adjustment
Keeps resin in the vat at the right level for resins under 500 cP.
Magnetic Platform
Tool-free platform installation and removal for faster turnaround.
Side-Shifting Membrane
No need to remove or reinstall the membrane between builds, increasing uptime.
Scraper and Roller
Remove air bubbles and reduce leveling time.
Resin Vat Heating
Supports more demanding environments and a wider range of materials.
Repeatable Precision
Built for prototyping and production of parts that need micron-level precision and repeatability.
Projection Micro Stereolithography
PµSL photopolymerizes a full layer of liquid resin in a single flash of UV light at micro-scale resolution. The D1025 extends the process with two optical resolutions, so one printer can deliver the same ultra-high resolution, accuracy and precision as BMF’s other systems — at the speed each job needs.
Where the D1025 Fits
Ideal For
- Research teams needing versatile, high-resolution printing
- Manufacturers running mixed precision and speed jobs
- Prototyping and production of micron-precision parts
- Parts combining fine features with larger bulk geometry
Why It Matters
- Two printers’ worth of capability in one system
- Hybrid mode balances detail and print time
- Automation shortens turnaround between builds
- Engineering-grade, functional materials
Specifications
Frequently Asked Questions
What does “dual resolution” mean?
The D1025 can print at 10µm optical resolution for tight tolerances, at 25µm for faster printing, or in hybrid mode that switches between the two within a layer or across layers.
When should I use hybrid mode?
Hybrid mode suits parts that combine critical fine features with larger, less detailed geometry — you get 10µm detail where it matters and 25µm speed everywhere else.
How much of the process is automated?
Platform, membrane and roller calibration are automatic, print parameters are set automatically based on print area and material viscosity, and resin level is adjusted automatically for resins under 500 cP. Manual control remains available.
How does the D1025 compare with the S350?
Both share a 100 × 100 × 50 mm build volume and ±1µm positional accuracy. The S350 is a 25µm system optimized for throughput, while the D1025 adds 10µm capability and hybrid printing.
What surface finish does it produce?
Top surfaces reach 0.4–0.8µm Ra and side walls 1.5–2.5µm Ra.
