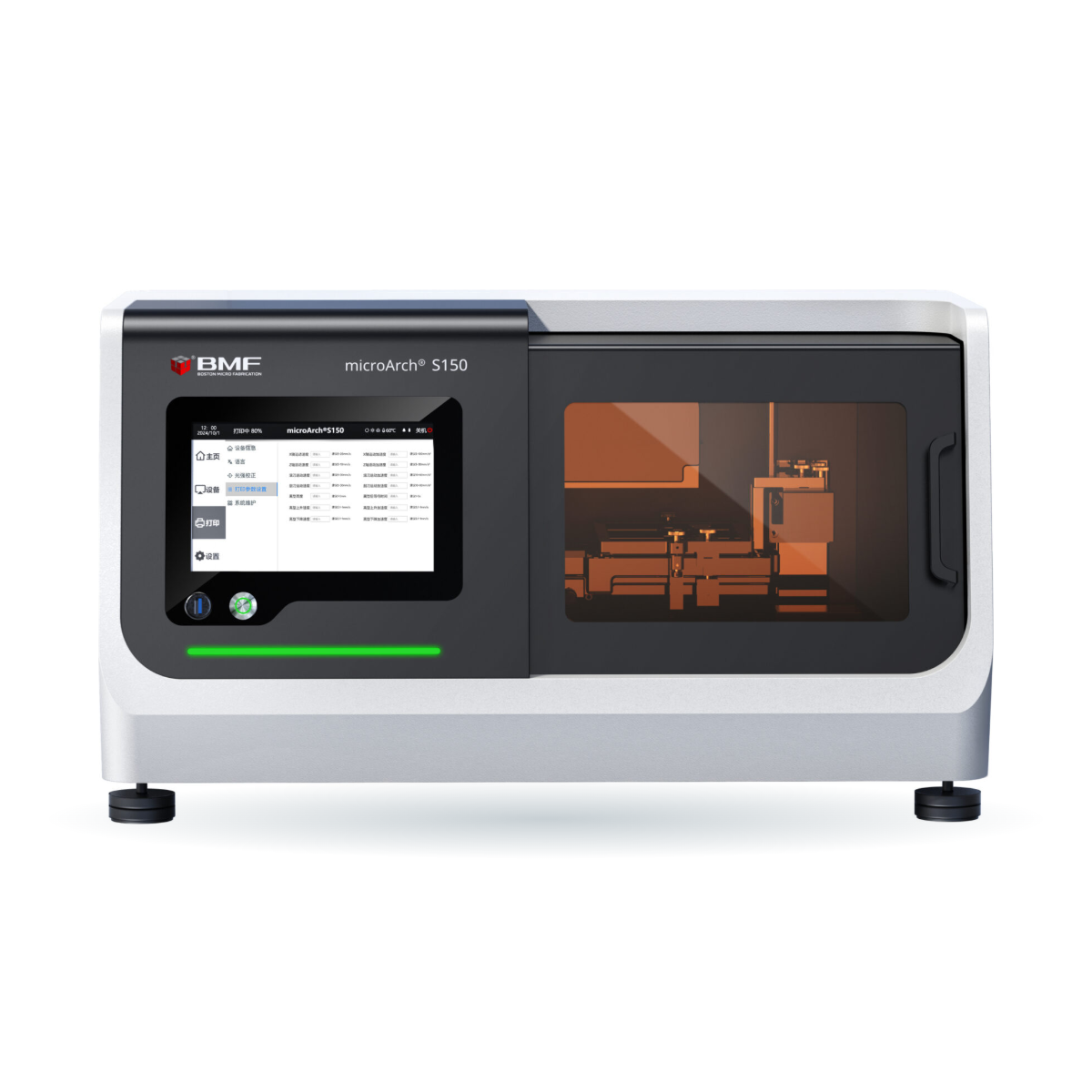

microArch S150 Series
Compact desktop micro 3D printing for rapid prototyping and engineering development — with automated calibration, a touchscreen workflow and support for high-viscosity materials.
- True 25µm optical resolution
- Two models: S150 and S150 Ultra
- Fits benchtops, offices and biological safety cabinets
Micro-Precision at Your Desk
Micron-Level Accuracy
True 25µm optical resolution delivers the surface quality, repeatability and dimensional control micro-scale work demands.
Faster Design Iteration
Quick setup and automated calibration keep design validation and engineering workflows moving.
Broad Material Compatibility
Supports a wide range of engineering and biomaterial viscosities for research and prototyping.
Two Models, One Platform
Both models share the same part quality, accuracy, repeatability and surface finish — choose based on throughput.
microArch S150
- Built for flexible lab and development work
- 25µm optical resolution, ±3µm accuracy
- Touchscreen with built-in material parameters
- Auto-leveling, one-touch operation
microArch S150 Ultra
- Prints up to 4× faster than the S150
- 4–12 seconds per layer
- Side-shift film tensioning system
- Same part quality and surface finish as the S150
Real Micro-Precision Parts, Printed Fast
Housing
A housing with 130µm features, printed on the S150 Ultra in 39 minutes.
Heat Exchanger for Blood Cooling
A complex biomedical heat exchanger, printed on the S150 Ultra in 1 hour 18 minutes.
Made for the Lab Bench
The S150 Series is sized for benchtops, offices, biological safety cabinets and cleanroom environments. Built-in HEPA13 filtration and UV-C sterilization keep the workspace and build chamber clean between runs — especially valuable for contamination-sensitive biomedical work.
Optional 5ml and 20ml micro resin vats let you print with small volumes of expensive or experimental materials.
See the S150 in Action
Features
Consistent dimensional performance on complex micro-scale geometries — a bridge from concept validation to functional prototyping.
Interactive Touchscreen
Built-in print parameters for standard materials, plus custom settings — simpler operation and higher print success.
Resin Vat Heating
Heats the vat up to 60°C to handle a wider range of materials and scenarios.
DLC-Coated Platform
A diamond-like carbon coating eases part removal, resists scratches and extends platform life.
HEPA13 Air Filtration
Built-in fresh air filtration for a cleaner operating environment.
UV-C Sterilization
A 253.7nm UV-C system keeps the inner chamber clean between runs.
Side-Shifting Membrane
No need to remove or reinstall the membrane between builds, improving uptime.
Projection Micro Stereolithography
PµSL projects patterned UV light through a dynamic optical system to cure entire resin layers at once — fast print speeds with micron-level feature resolution. Precision optics, controlled photopolymerization and accurate motion systems produce complex geometries, fine channels and intricate features that are difficult or impossible with conventional manufacturing.
Where the S150 Series Fits
Applications
- Microfluidics
- Fiber optics
- Biomedical devices
- Advanced electronics
- Materials and academic research
Why It Matters
- Entry point to PµSL micro-precision
- Auto-leveling, no-calibration operation
- Clean-environment ready with HEPA and UV-C
- Small-volume micro vats for costly materials
- Upgrade throughput with the Ultra model
Specifications
Frequently Asked Questions
What’s the difference between the S150 and S150 Ultra?
The S150 is built for flexible lab and development work. The S150 Ultra targets higher throughput, printing up to 4× faster at 4–12 seconds per layer and adding a side-shift film tensioning system. Both deliver the same part quality, accuracy, repeatability and surface finish.
Can the S150 go inside a biological safety cabinet?
Yes. The S150 Series is designed for flexible placement in biological safety cabinets, on benchtops, in offices and in cleanroom environments, with built-in HEPA13 filtration and UV-C sterilization.
Does it require manual calibration?
No. The S150 Series features auto-leveling with no-calibration, one-touch operation through the interactive touchscreen.
Can I print with small amounts of resin?
Yes. Optional 5ml and 20ml micro resin vats are available for small-batch or high-cost materials.
What resolution and accuracy does it deliver?
True 25µm XY optical resolution, ±3µm XY positional accuracy, layer thickness from 10–100µm and top surface finishes of 0.4–0.8µm Ra.
