Unparalleled Flexibility in Print & Cut

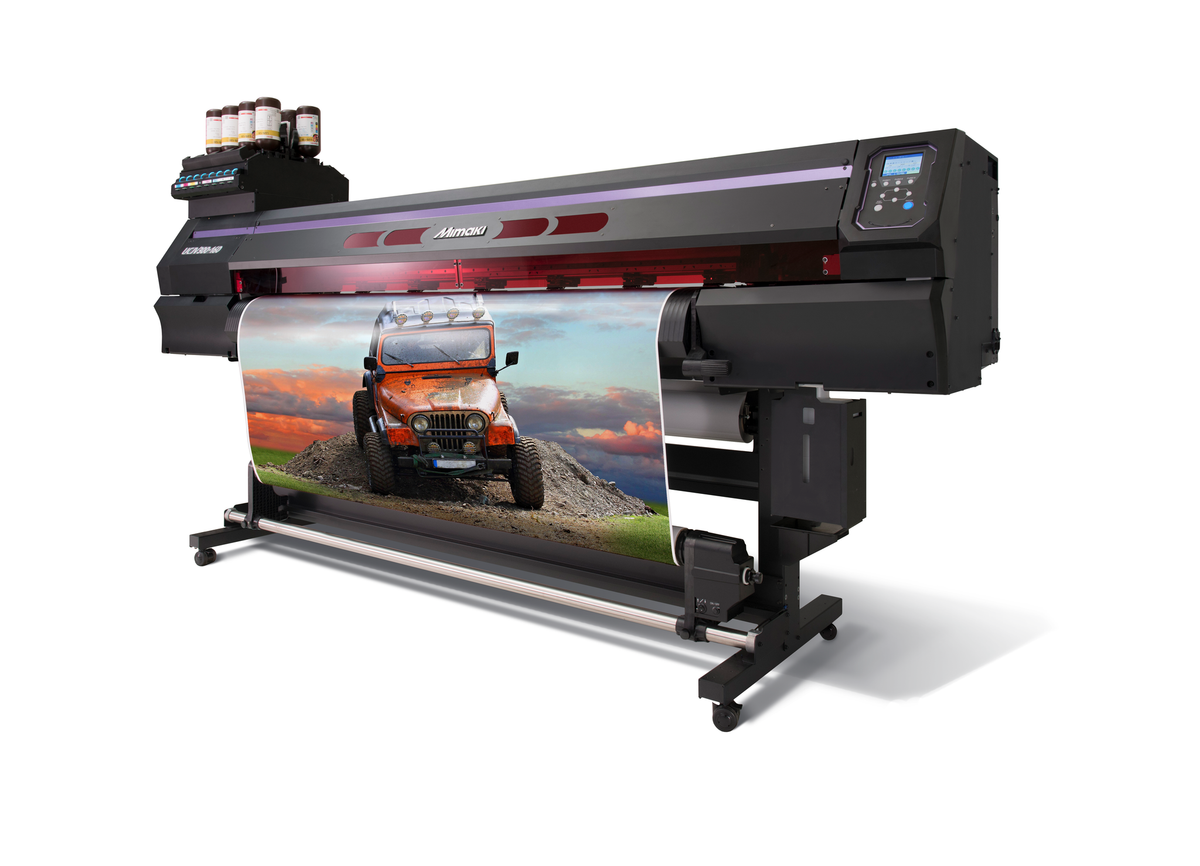

The UCJV300 Series brings in-line print-and-cut capability with multi-layer printing for transitional or double-facing images, available in 32", 42", and 64" widths with print speeds up to 277.7 sq ft/hr. Graphics are instantly cured, so shops can move straight to finishing without waiting on the print to set.
Support for 4- and 5-layer printing unlocks day/night and backlit effects that standard print & cut devices can't produce, while high media versatility and unparalleled scratch resistance keep it useful across a wide range of applications.
Multi-Layer Printing, Built to Run Unattended
Print, cure, and cut in one pass — with automated nozzle recovery keeping jobs moving.
4- & 5-Layer Printing
Produces transitional or double-facing images, with high-opacity White ink enabling single-pass block-out for PUSH/PULL door signage.
Nozzle Recovery System (NRS)
Automatically substitutes unproductive nozzles, avoiding unnecessary downtime and preserving image quality without operator intervention.
Integrated Print & Cut
Instant UV curing means graphics move directly into cutting — no drying wait between print and finish.
GREENGUARD Gold Certified, Warranty-Backed Ink
All UCJV300 Series inks are GREENGUARD Gold certified. UV-curable ink delivers greater opacity with less ink consumption per square meter than solvent or latex alternatives, while maintaining image vibrancy and density — and preventing common issues like film separation.
- GREENGUARD Gold certified LUS-170/LUS-200 inks
- 3M™ MCS™ Warranty on LUS-200 ink
- Avery Dennison™ ICS™ Performance Guarantee on LUS-170/LUS-200
Ink Types
LUS-170
Standard UV-curable ink for everyday signage, decals, and label production.
LUS-200
Extended ink line, warranty-eligible under both 3M™ MCS™ and Avery Dennison™ ICS™ programs.
Choosing between LUS-170 and LUS-200 lets shops align ink chemistry with whichever finished-graphic warranty their customers need.
RasterLink6 Plus Included
ID Cut Function Built In
RasterLink6 Plus ships standard with the UCJV300 Series, including an ID Cut function that makes printing and cutting faster and easier to coordinate.
Full Specifications
Dimensions and weight shown for the UCJV300-160 model; family also includes -75, -107, and -130
Print & Ink
| Print Head | On-demand piezo head |
| Print Resolution | 300 / 600 / 900 / 1200 dpi |
| Max. Print Speed | Up to 277.7 sq ft/hr (25.8 m²/hr) |
| Ink Type | LUS-170 (C, M, Y, K, Lc, Lm, White) / LUS-200 (C, M, Y, K) |
| Ink Package | 1L bottles |
Media & Print Area
| Max. Print Width | 31.4 in (800 mm) / 42.9 in (1,090 mm) / 53.6 in (1,361 mm) / 63.4 in (1,610 mm) |
| Max. Media Width | 31.9 in (810 mm) / 43.3 in (1,100 mm) / 54.0 in (1,371 mm) / 63.8 in (1,620 mm) |
| Media Thickness | Up to 0.04 in (1 mm) |
| Rolled Media Weight | 88 lb (40 kg) |
Power & Environment
| Power Supply | AC100V–240V × 2 |
| Power Consumption | AC100V: 1.44kW / AC200V: 1.92kW |
| Operating Temp. | 68–86°F (20–30°C) |
| Operating Humidity | 35–65% Rh (non-condensing) |
Interface, Certifications & Dimensions
| Interface | Ethernet, USB |
| Certifications | GREENGUARD Gold certified UV-LED inks, low VOC |
| Dimensions (UCJV300-160) | 114.2 in x 30.6 in x 58.1 in (2,900 x 776 x 1,475 mm) |
| Weight (UCJV300-160) | 414.5 lb (188 kg) |
