Direct-to-Object Printing, Built for Production

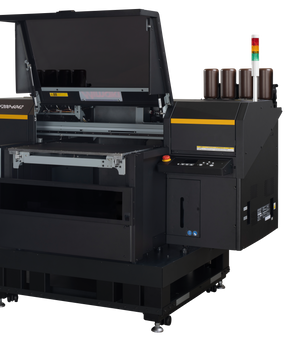

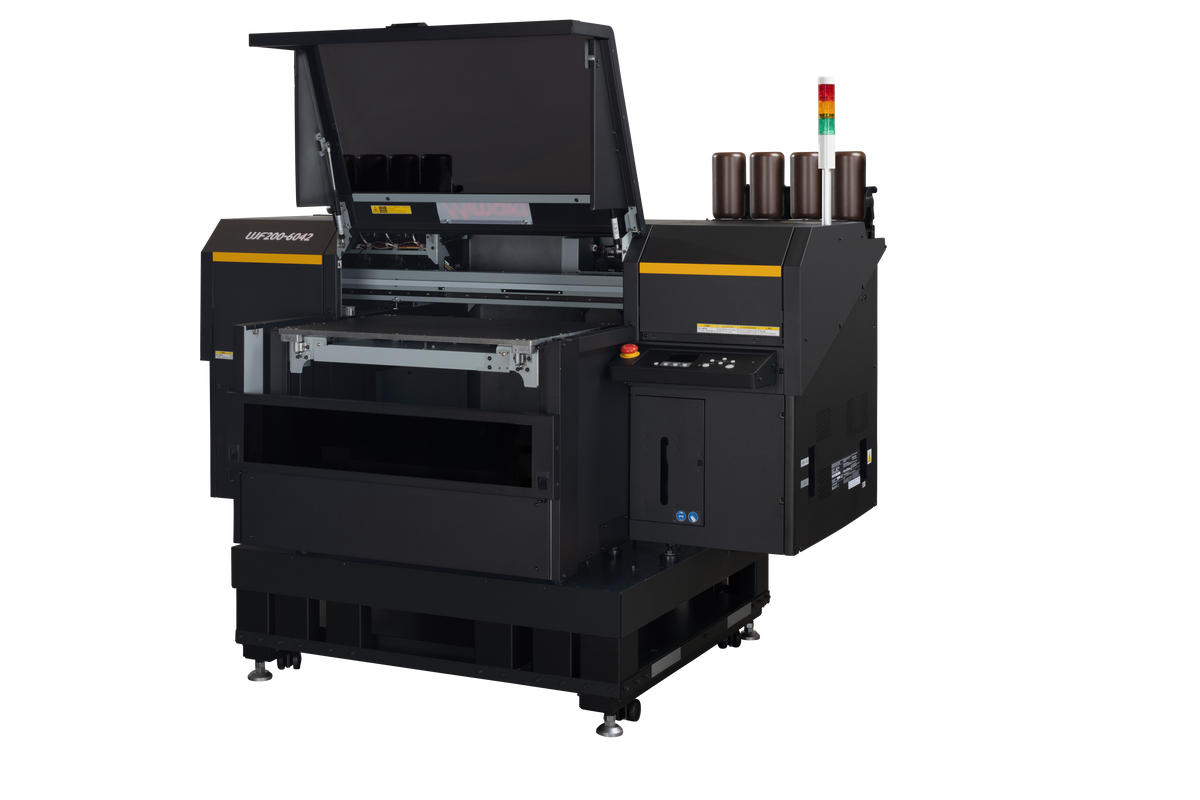

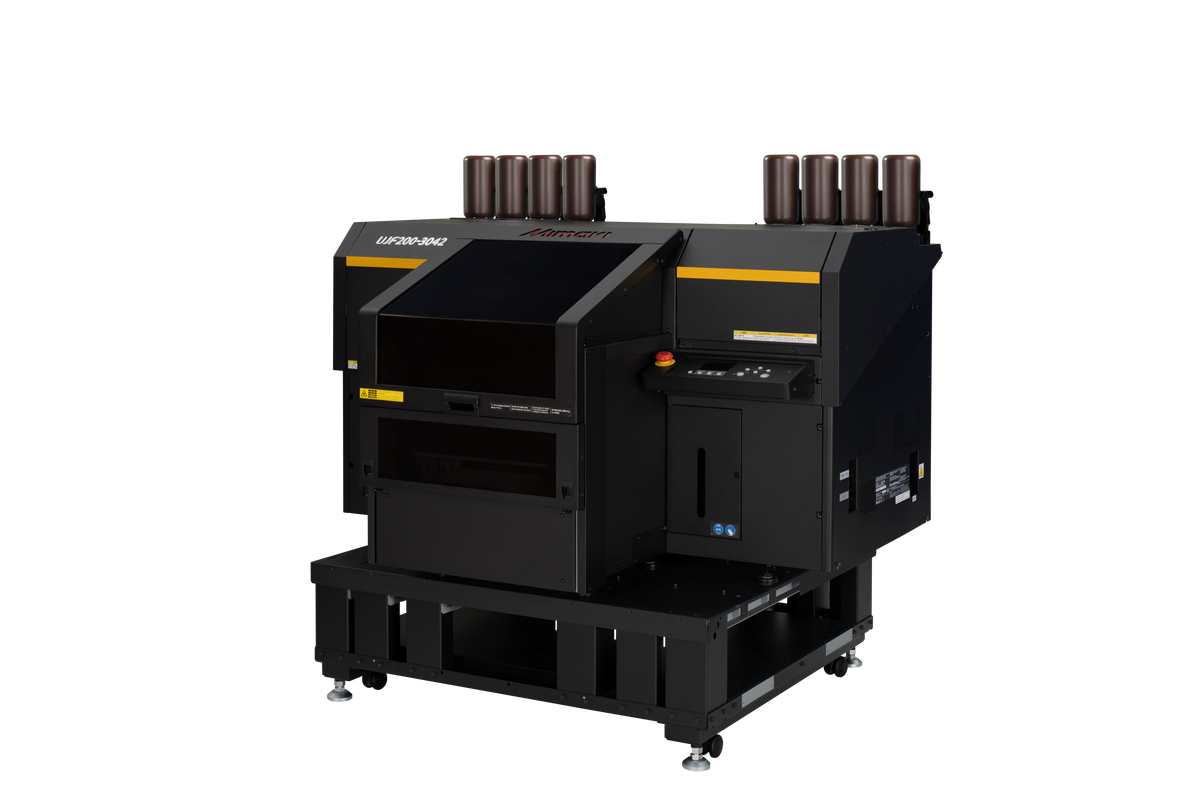

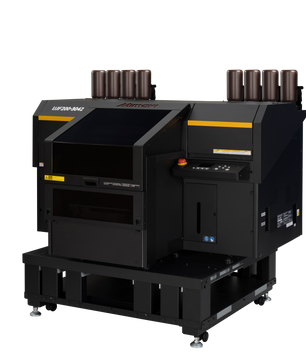

The UJF200 Series is Mimaki's benchtop UV-LED flatbed platform for printing directly onto rigid and dimensional objects. Available in the UJF200-3042 and UJF200-6042 sizes, it supports objects up to 9.8" (250 mm) tall and up to 44 lb (20 kg) — from phone cases and electronics accessories to industrial parts and personalized gifts.
Drawing on the proven UJF platform, this generation pushes image quality up to 1,800 dpi while adding automation options that let a single printer scale from manual, one-off jobs to unattended, high-mix production runs.
Precision Printing, Automated Workflow
A high-precision engine pairs with optional automation to fit shops at very different production scales.
High-Precision Single Printhead
Minimum 3 pL droplet control combined with MAPS4 technology for smooth gradients, fine lettering, and reduced banding.
Optional Camera Alignment
Automatically recognizes the position, shape, and orientation of objects on the table and adjusts print placement accordingly.
Optional Belt System
Available on the UJF200-6042, the belt system enables continuous, largely unattended production for higher-volume runs.
Built for Industrial Production Environments
Beyond print quality, the UJF200 Series is designed to plug into real production workflows — supporting variable data printing, PANTONE® color matching, step & repeat layouts, and ID-Cut print-and-cut integration, with multi-printer control for shops running more than one unit.
- Variable data printing and step & repeat layouts
- PANTONE® color matching for brand-accurate output
- ID-Cut print-and-cut and multi-printer control
Ink Types
CMYK + White + Clear
Full-color set with white for opacity on dark or transparent substrates, and clear for gloss and spot effects.
Fluorescent Pink & Yellow
High-impact fluorescent inks available alongside light color options, for standout branding and promotional work.
Whether it's personalized gifts, industrial components, or retail products, the UJF200 Series' ink flexibility keeps one machine relevant across a wide range of jobs.
RasterLink8 Included
Streamlined Setup, Automated Alignment
The UJF200 Series ships with RasterLink8, Mimaki's latest RIP and workflow software, adding enhanced job management and automated camera alignment that positions print data accurately with minimal manual setup.
Full Specifications
Covers both UJF200-3042 and UJF200-6042 models
Print & Ink
| Print Head | On-demand piezo head × 1 |
| Print Resolution | 600 / 900 / up to 1,800 dpi |
| Ink Type | ELH-100 / ELS-120 / PR-200 / EFS-150 |
| Ink Colors | C, M, Y, K, Lc, Lm, Fy, Fp, White, Clear, Primer |
| Ink Supply | 1L bottle, 250ml bottle dispensing system |
Media & Print Area
| Print Area (UJF200-6042) | 610 x 420 mm (24 x 16.5 in) |
| Print Area (UJF200-3042) | 420 x 300 mm (16.5 x 11.8 in) |
| Load Capacity | 20 kg or less (center load) |
| Max. Media Thickness | 250 mm or less |
Power & Environment
| Power Supply | Single-phase AC100–240V ±10%, 5A, 50/60Hz ±1Hz |
| Power Consumption | Max. 450W, standard 250W, min. 4.5W or less |
| Operating Temp. | 20–30°C |
| Operating Humidity | 35–65% Rh (non-condensing) |
Interface, Certifications & Dimensions
| Interface | USB 2.0 / Ethernet 1000BASE-T |
| Certifications | VCCI Class A, FCC Class A, IEC 62368-1 CB, CE Marking (EMC/LVD/Machinery), RoHS, REACH, Energy Star, EAC, RCM |
| Dimensions (UJF200-6042) | 1,680 x 1,166 x 798 mm |
| Dimensions (UJF200-3042) | 1,380 x 1,166 x 800 mm |
| Weight | 187 kg (6042) / 171 kg (3042) |
